40 Chapter 3
Removing the Battery Pack

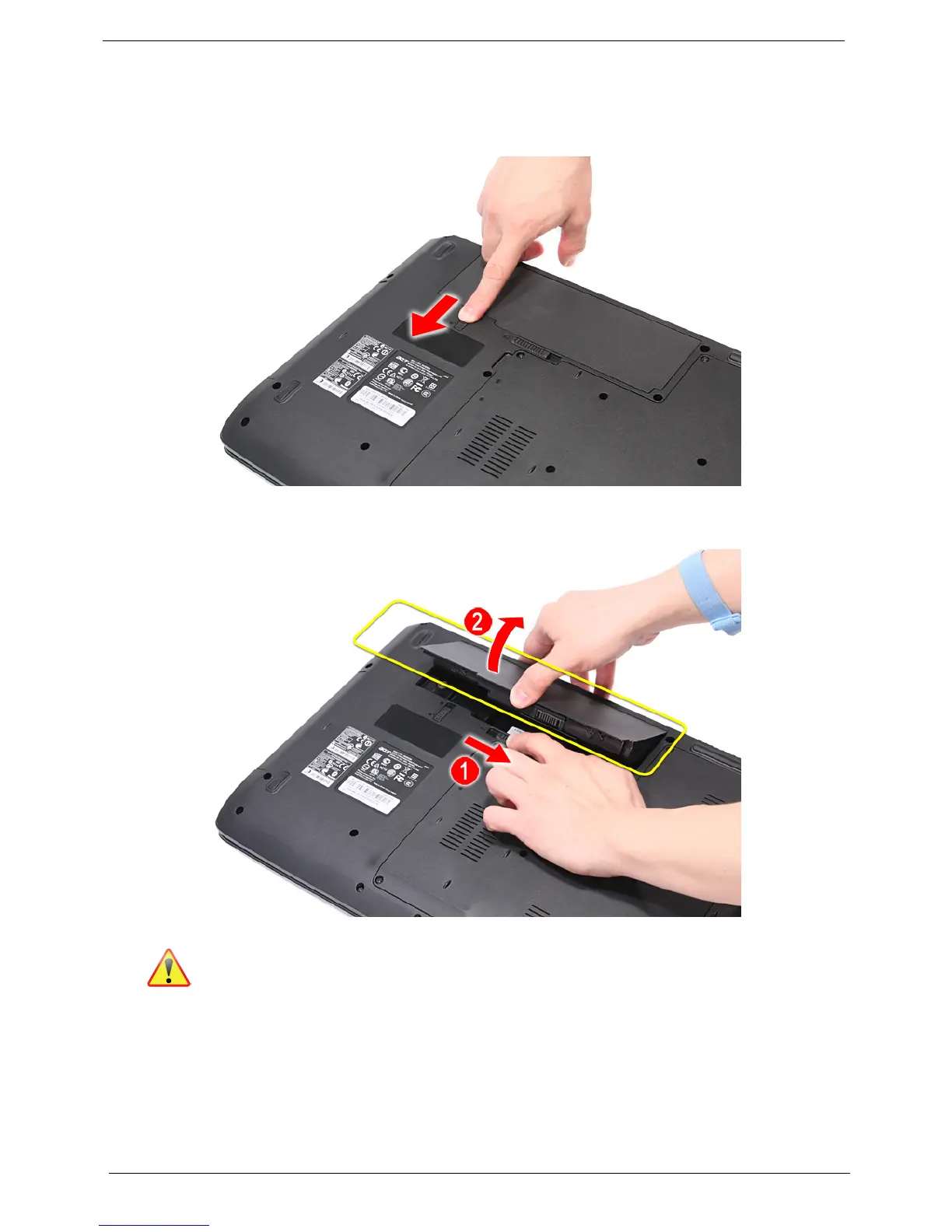

1. Turn base unit over.
2. Slide the battery lock/unlock latch to the unlock position.
3. Slide the battery release latch to the release position (1) to pop out the battery pack, then remove the
battery pack from the main unit (2).
Note: Battery has been highlighted with the yellow circle as above image shows. Please detach the
battery and follow local regulations for disposal.
