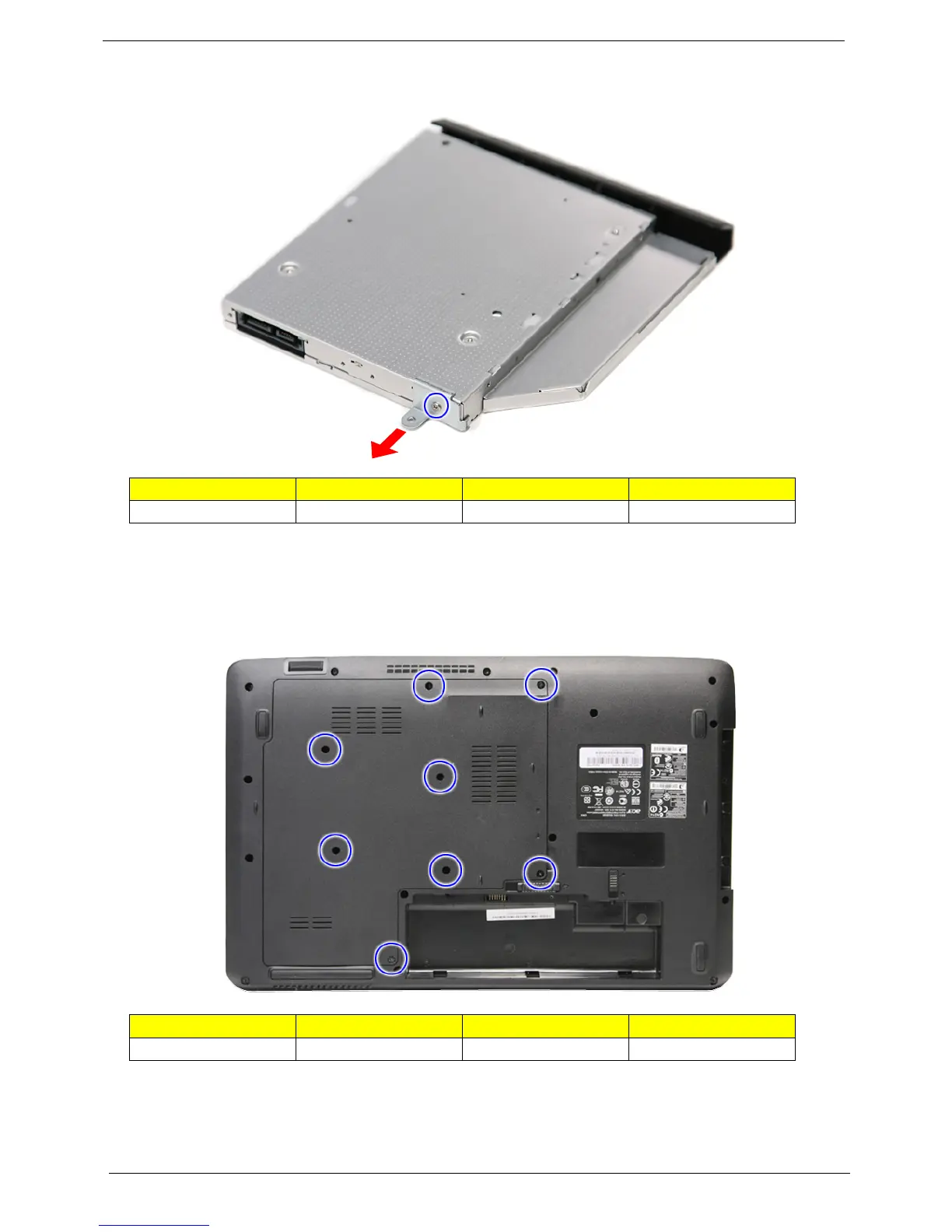

4. Remove the one screw (G) securing the locker bracket and remove the locker bracket from the optical
disk drive module.
Removing the Back Cover
1. See “Removing the Battery Pack” on page 40.
2. Release the four screws (A) and four captive screws securing the back cover.
Size (Quantity) Color Torque Part No.
M2 x L3 (1) Silver 1.6 kgf-cm 86.9A522.3R0
Size (Quantity) Color Torque Part No.
M2.5 x L6 (4) Black 3.0 kgf-cm 86.00E12.536
To Next Page
