Acer Aspire M5810 - Rear Panel

Chapter 1 7

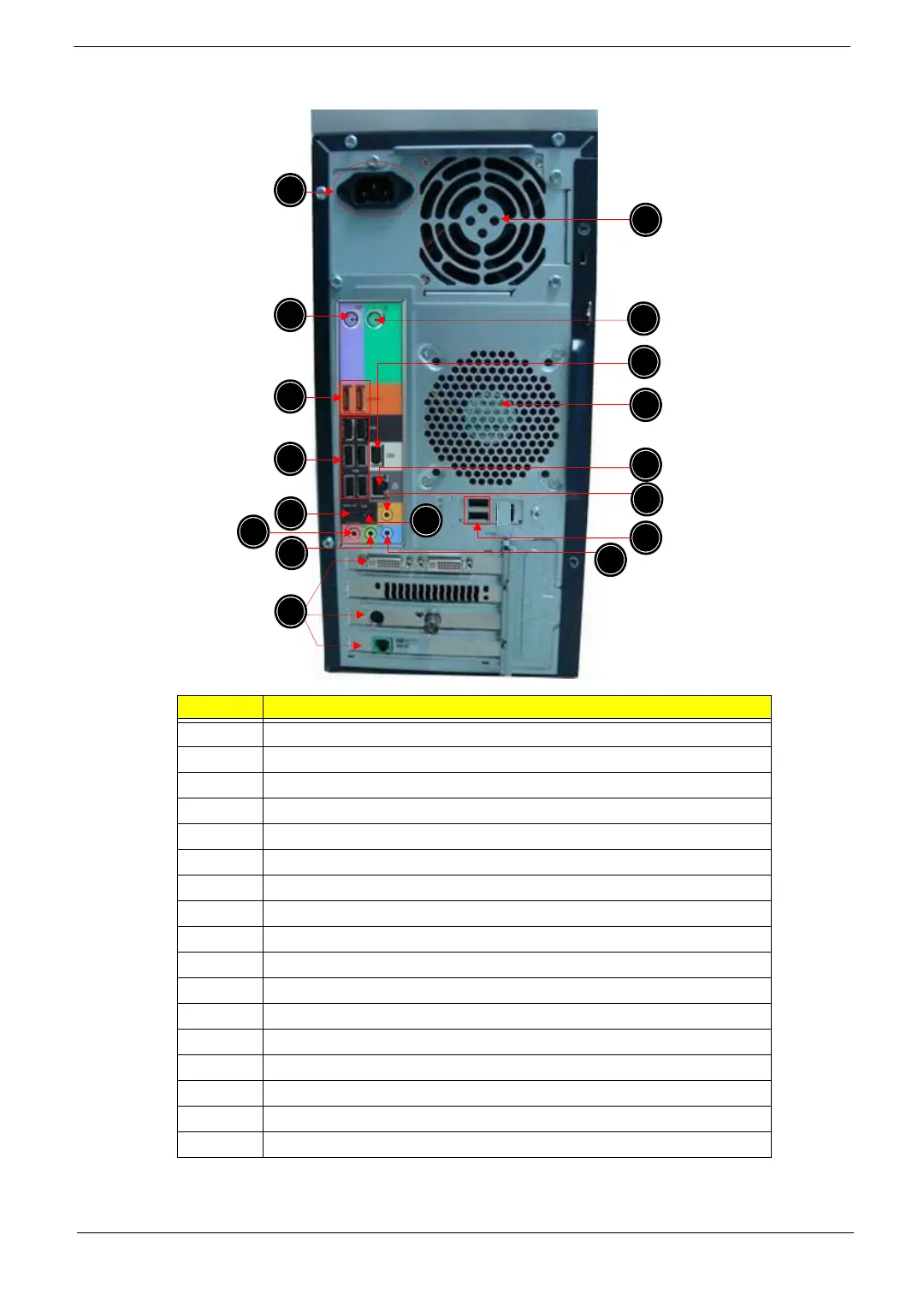

Rear Panel
No. Component
1 Power connector
2 PS2 mouse port Line-out jack
3eSATA port
4 USB 2.0 ports
5 S/PDIF port
6 Microphone/speaker-out/line-in jack
7 Line-out jack
8 Expansion slot (graphics card and TV tuner card and Mode card)
9 Surround rear L/R
10 Line-in jack
11 USB 2.0 ports
12 Center speaker/subwoofer jack
13 LAN connector
14 System FAN
15 1394 port
16 PS2 keyboard port
17 Fan aperture
