Acer Aspire M5810 - Removing the TV Tuner Card; Removing the Hard Disk Drive

31 Chapter 3

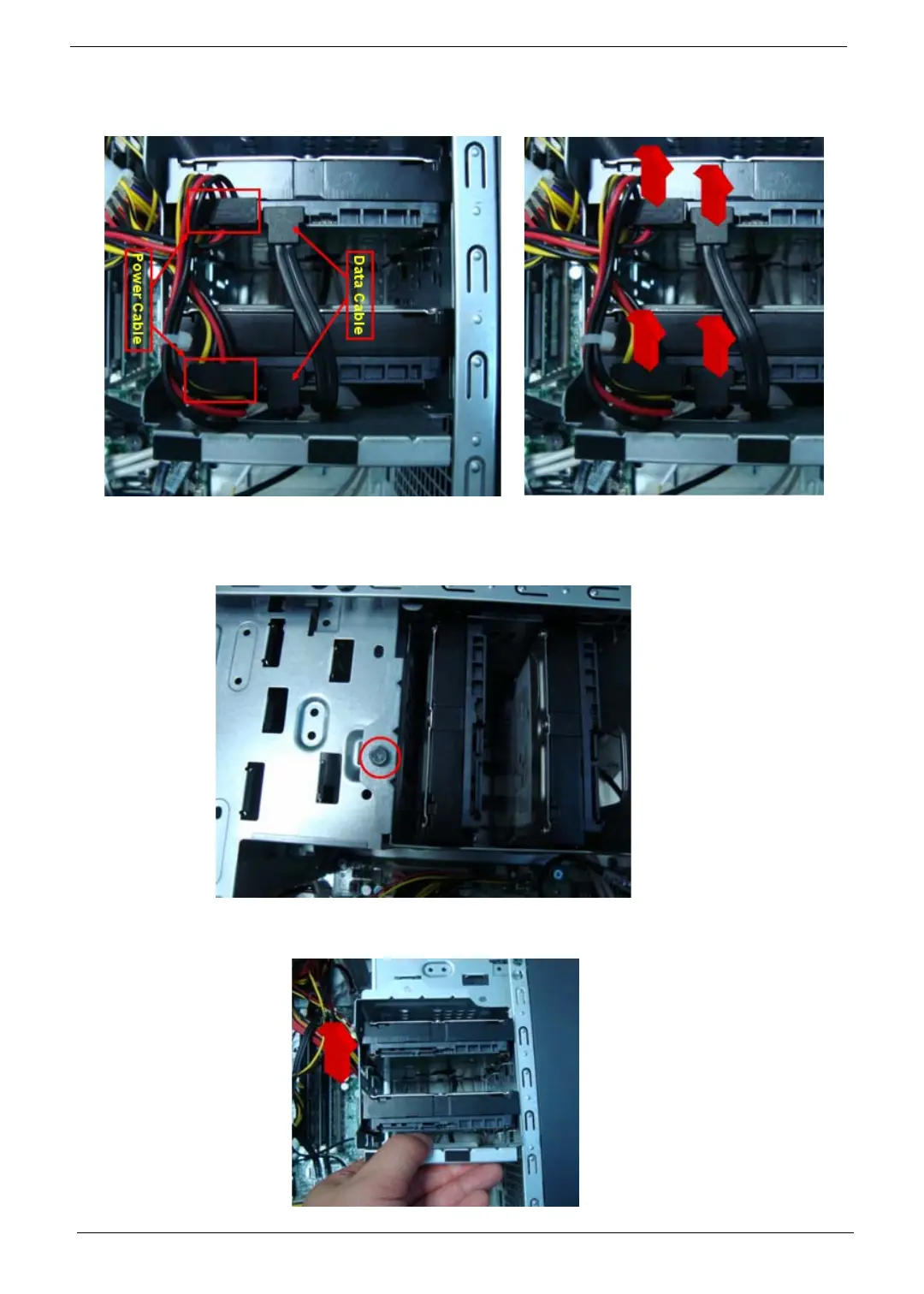

Removing the Hard Disk Drive
1. Disconnect the data and power cables from the rear of the optical drive and the mainboard.
2. Remove the HDD bracket
a. Remove the screw that secures the HDD bracket to the ODD bracket.
b. Lift the bracket up and turn it over.
