Aspire AX1470 Service Guide 31
Removing the Optional Expansion Boards

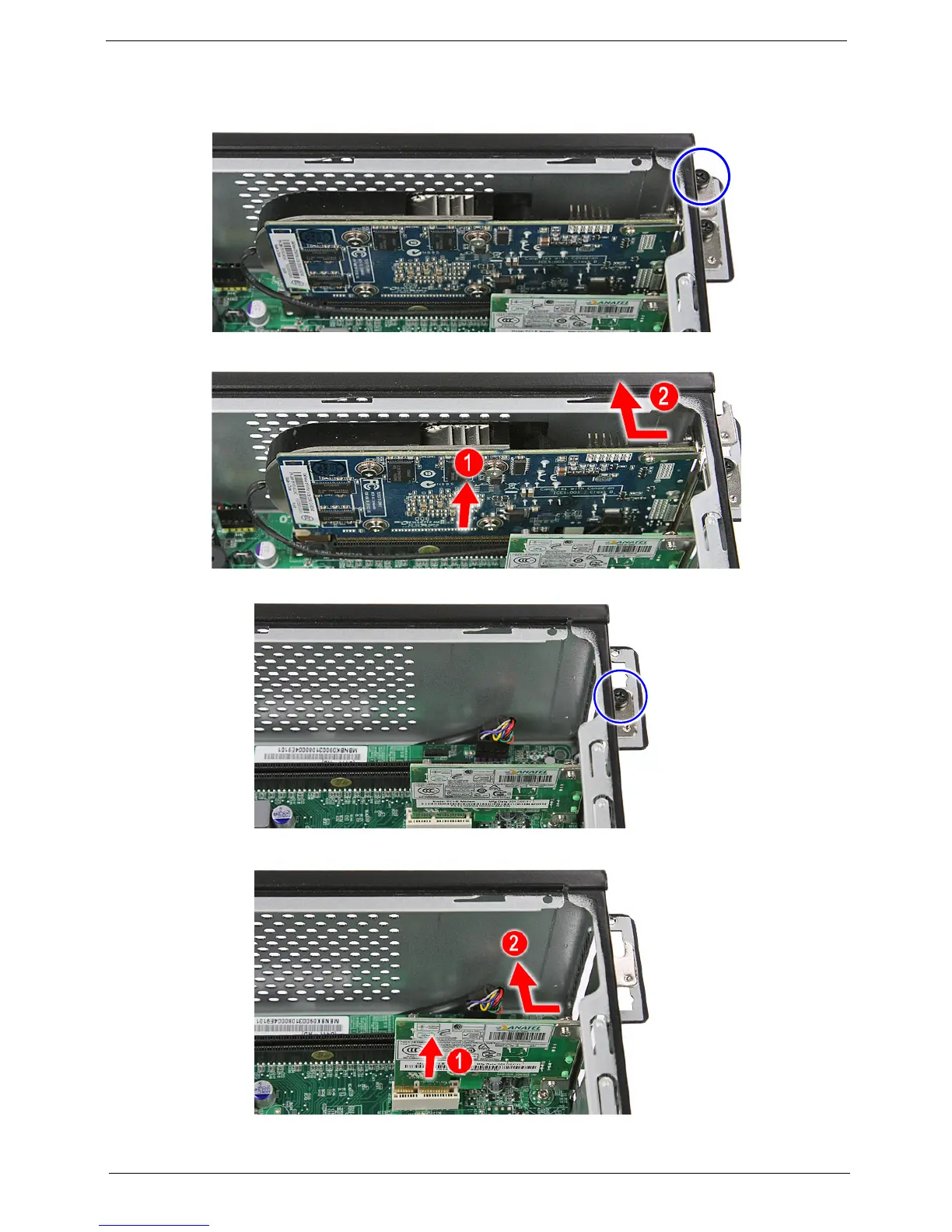

1. Remove the screw from the expansion board bracket opposite the PCIe x16 slot.
2. Gently pull up the expansion board (1), move it slightly to the left and remove (2) from the slot.
3. Remove the screw from the expansion board bracket opposite the PCIe x1 slot.
4. Gently pull up the expansion board (1), move it slightly to the left and remove (2) from the slot.
