Connecting Optional Devices

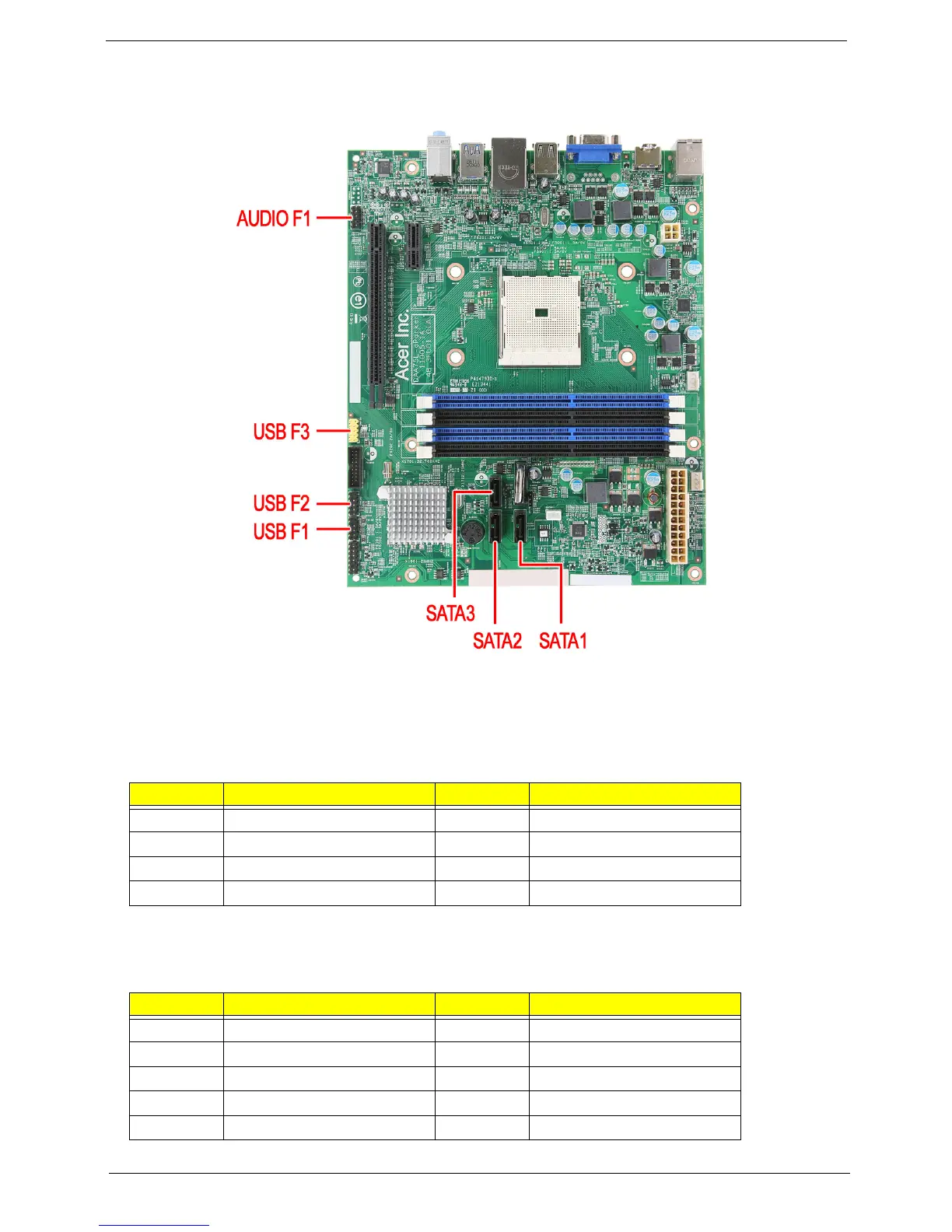

Refer to the following for information on connecting the main board’s optional devices:
SATA1~3: Serial ATA connectors
These connectors are used to support the new Serial ATA devices for the highest data transfer rates 
(3.0 Gb/s), simpler disk drive cabling and easier PC assembly. It eliminates limitations of the current Parallel
ATA interface, but maintains register compatibility and software compatibility with Parallel ATA.
AUDIOF1: Front Panel Audio header
This header allows the user to install auxiliary front-oriented microphone and line-out ports for easier access.
Pin Signal Name Pin Signal Name
1 Ground 2 TX+
3 TX- 4 Ground
5 RX- 6 RX+
7 Ground
Pin Signal Name Pin Signal Name
1 PORT 1L 2 AUD_GND
3 PORT 1R 4 PRESENCE#
5 PORT 2R 6 SENSE1_RETURN
7 SENSE_SEND 8 KEY
9 PORT 2L 10 SENSE2_RETURN
