1-16 Disassembly Procedures
Touchpad Module Removal 0
Prerequisite:
Battery Pack Removal
1. Find the touchpad module (D) on the top assembly. Refer to Figure 1-12.
2. Disconnect the touchpad FFC (A) from the mainboard connector (B) (Figure 1-18).
3. Disconnect the touchpad FFC (A) from the touchpad connector (C) (Figure 1-18).
4. Remove the touchpad FFC (A) from the system (Figure 1-18).
5. Remove three (3) screws (E) securing the touchpad module in place (Figure 1-18).

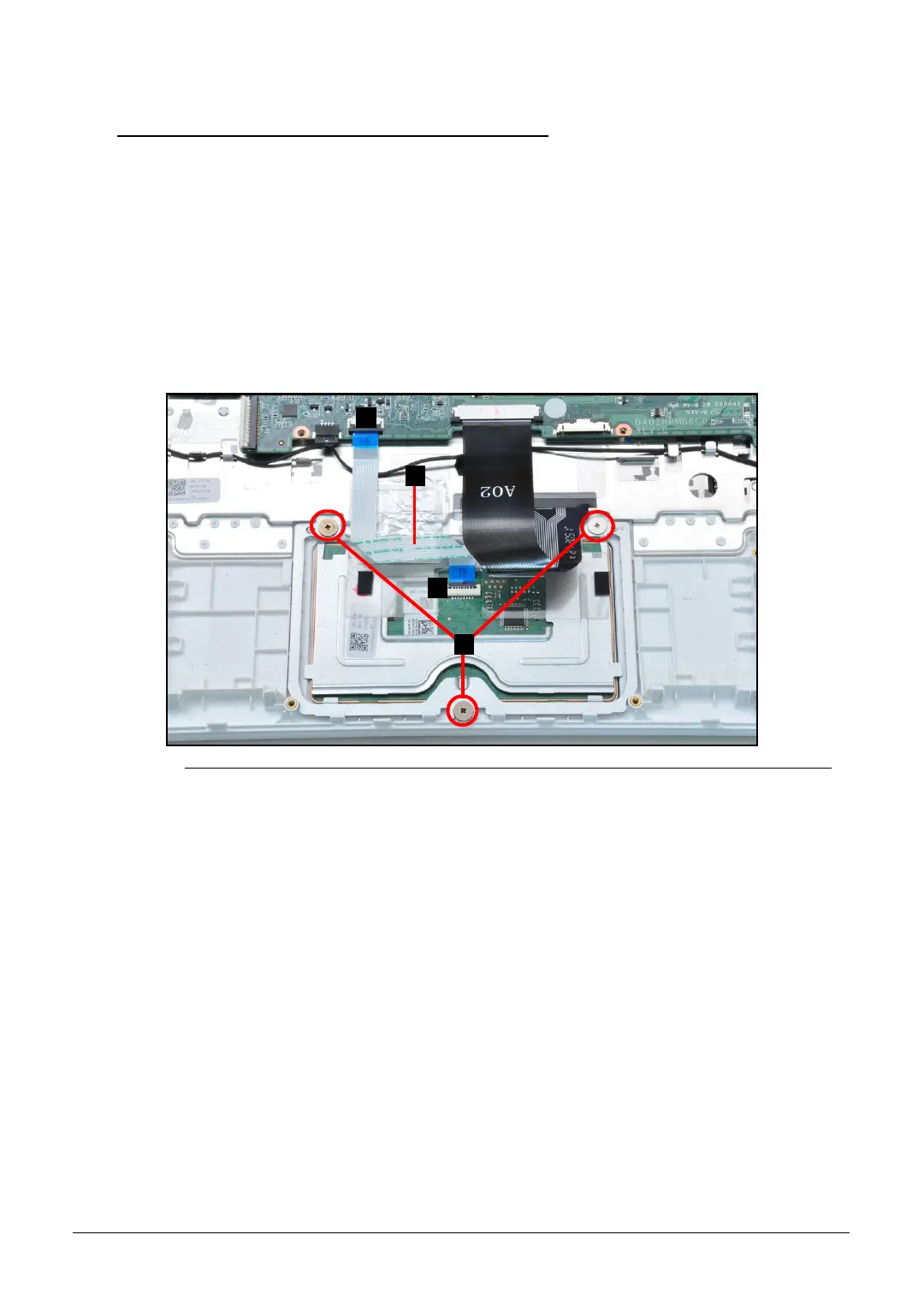

Figure 1-18. Touchpad FFC and Screw Location
