Projector Overview

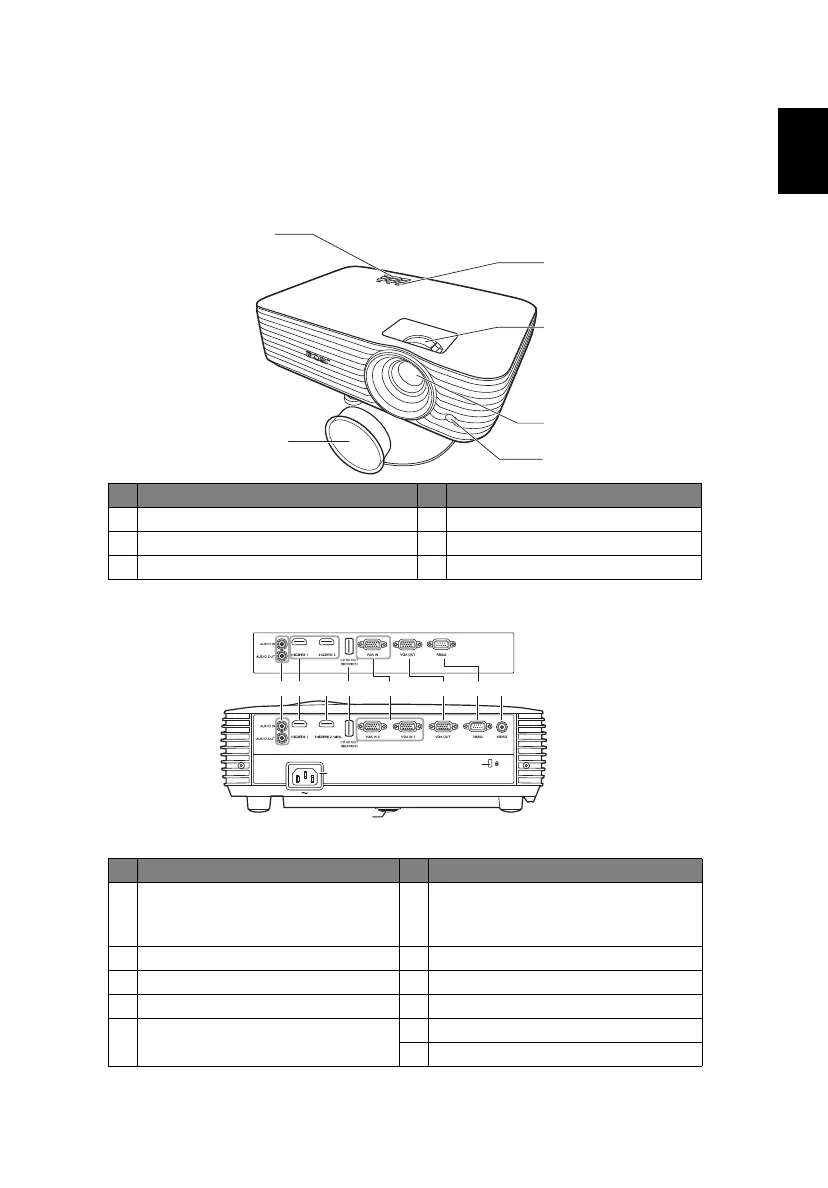

Projector Outlook
Front/upper side
Rear side
# Description # Description
1 Control panel 4 Zoom ring and Focus ring
2 Lens cap 5 Projection lens
3 Power key and Power indicator LED 6 IR remote sensor
# Description # Description
1 Audio input connector
Audio output connector
6 Monitor loop-through output
connector (from VGA IN or VGA IN
1 only)
2 HDMI connector 7 RS232 connector
3 HDMI (MHL) connector 8 Composite video input connector
4 DC 5V output (service) 9 Power socket
5 Analog RGB signal/HDTV/
component video input connector
10 Kensington™ lock port
11 Tilt adjusting wheel
1
4
5
3
6
2
9
10
11
1 2 3 4 5 6 7 8
Note: Connector interface is subject to model's specifications.
