3-33 Service and Maintenance
Speaker (Left) Removal
Prerequisite
Lower Case Removal on page 3-9
1. Remove the screws securing the speaker to the bezel.

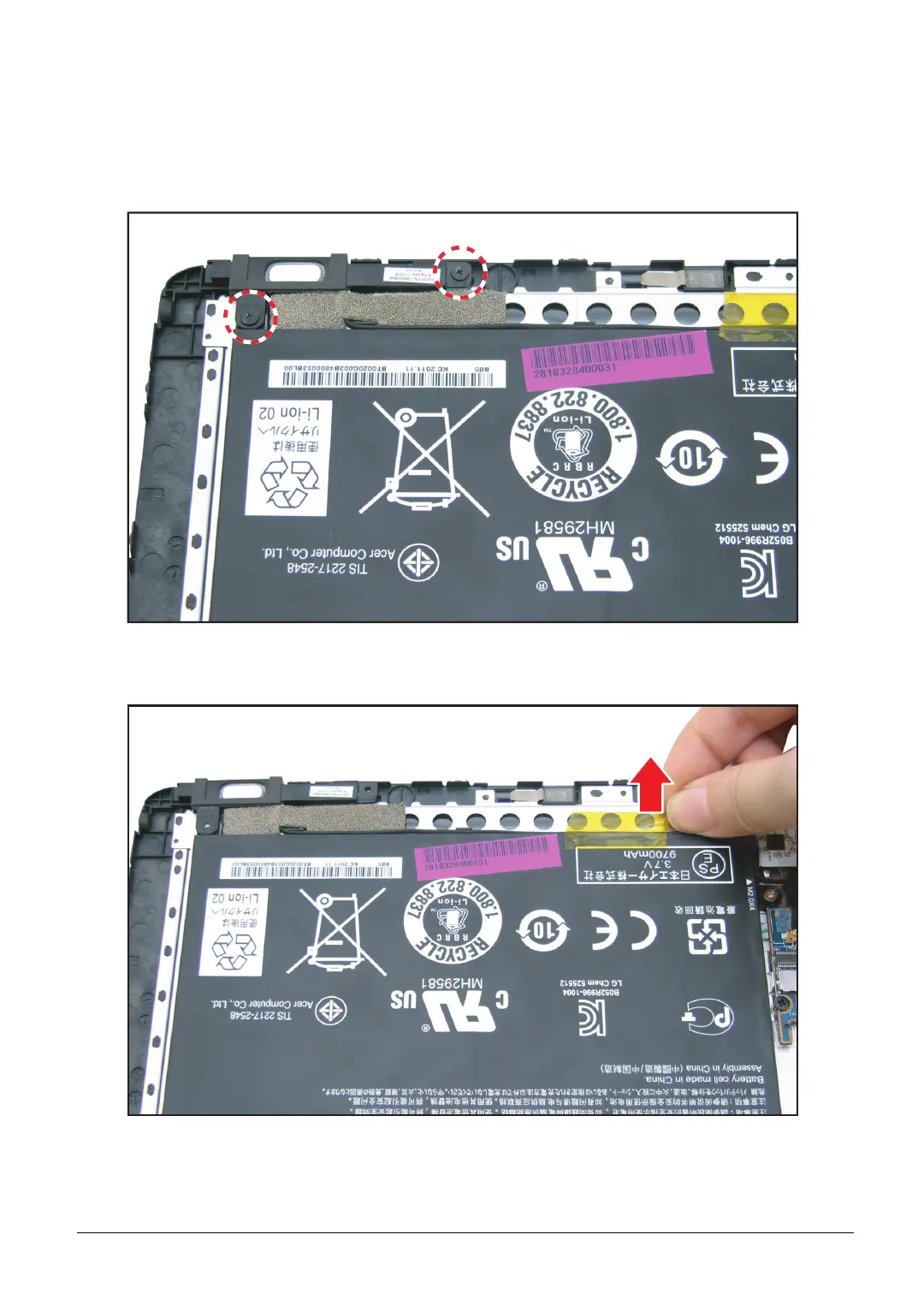

Figure 3:54. Removing the Speaker Screws
2. Remove the protective tape covering the speaker cable.
Figure 3:55. Removing the Protective Tape
To Next Page
