Service and Maintenance 3-50
LVDS Cable Installation

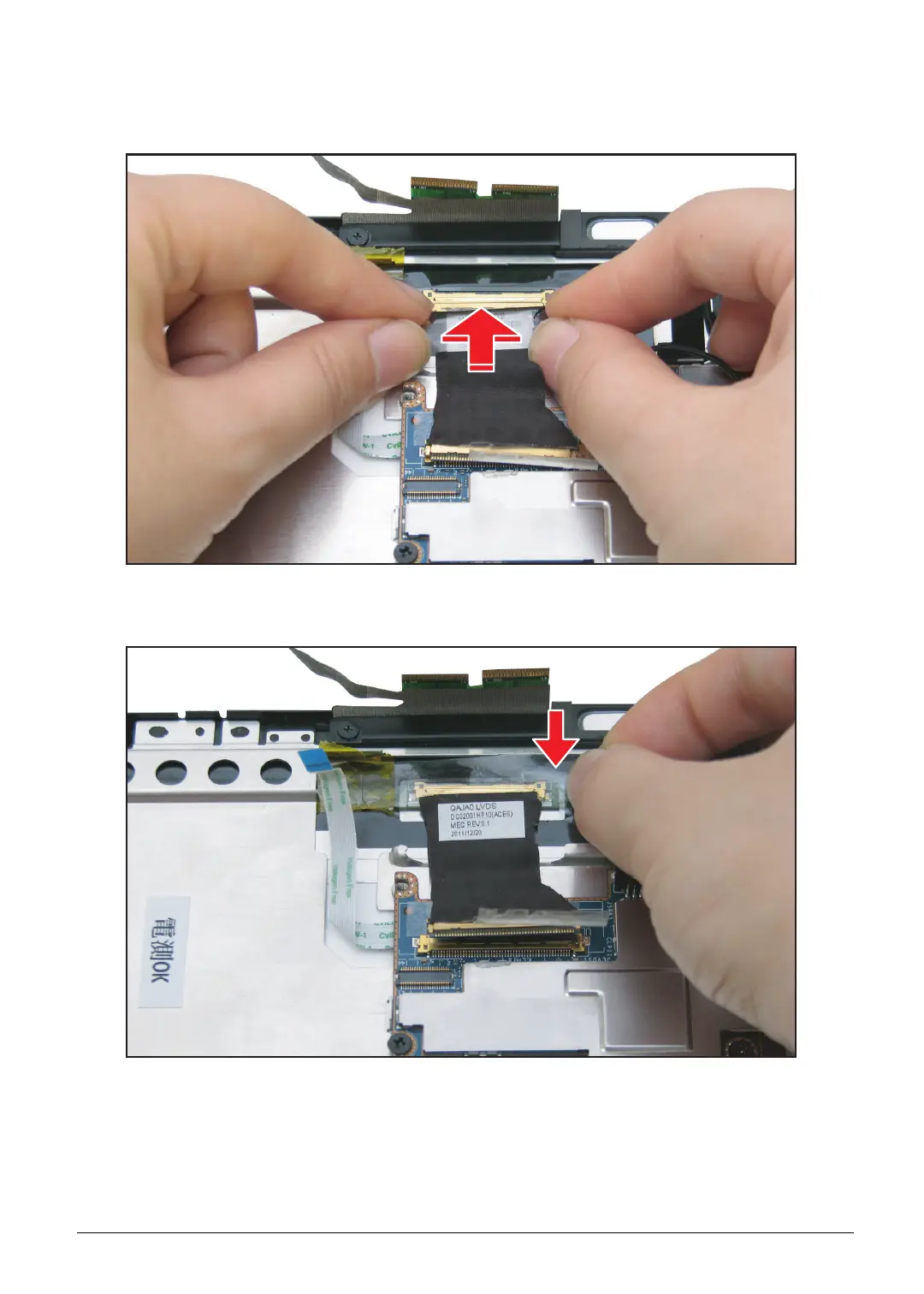

1. Connect the LVDS cable connector to the LCD panel connector.
Figure 3:83. Installing the LVDS Cable (1 of 4)
2. Secure the protective tape to the bezel.
Figure 3:84. Installing the LVDS Cable (2 of 4)
