Acer LCD-X193HQ User Manual

Acer Acer –LCD-X193HQ
53

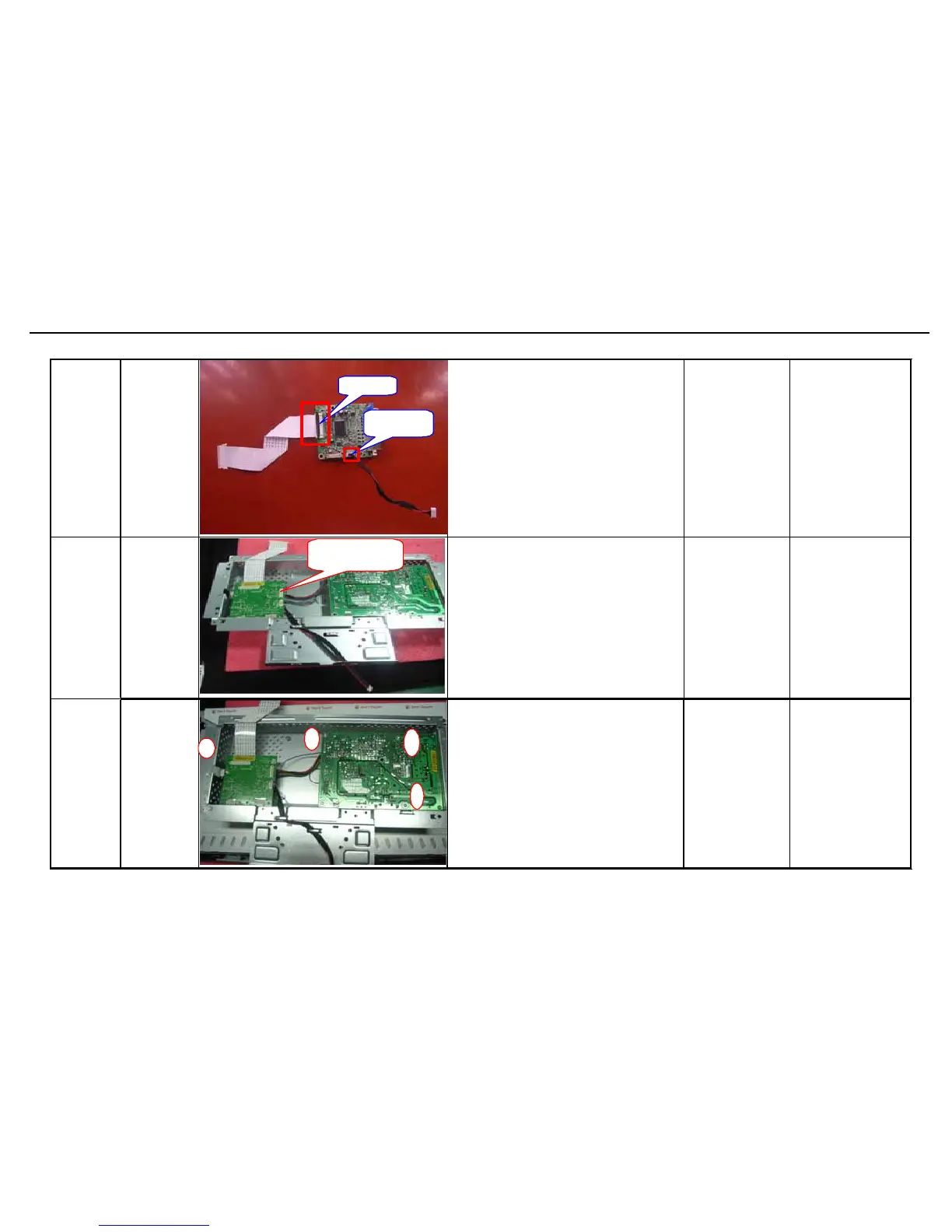

Assembly and Disassembly (continue)
S4
Insert FFC
cabel into
mainboard
(1).Insert FFC wire into its relevant
interface of mainboard properly like
attached picture1.
(2).Insert the short keypad into its
relevant interface like picture
(2).Put the fixed mainboard in the right
position.
430303001970R
HRN LVDS FFC
30P 147MM
S5
link power
board and
main board
1. Link power board and main board ,and
make sure the cable is in the correct
position
2.put the main board into the chassis
and make the FFC cable is OK , as
791931400700R
PCBA,P/I
BOARD,W/SPK,LE
18K3-712 ROHS
S6
Fix board
Fix 4pcs M3*5 screw into the power
board and main board as picture
791931300702R
PCBA,I/F
BOARD,W/SPK,LE
18K3-712 ROHS
Keypad cable
socket
FFC socket
link main board
and power
1
4
3
2
