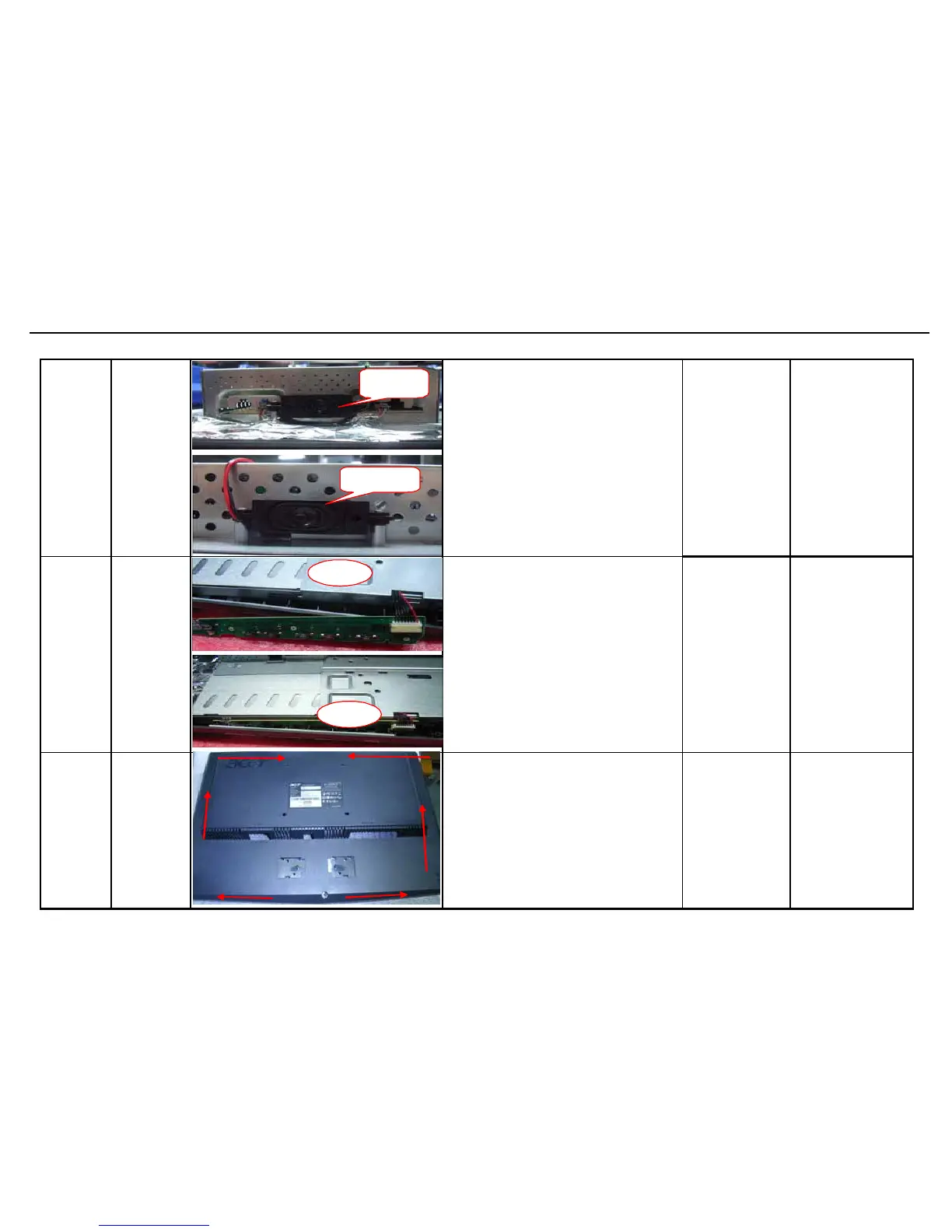

Assembly and Disassembly (continue)
S13
Assemble
speaker
Put the right and left speaker into the two
position of chassis , remark : put the
speaker with green cable to left ,and put
the speaker with red cable to right , you
can find picture 1and picture 2
618100200360R
SPEAKER 2W 8Ω
290
＆
240mm R/G/B
W/CASE
S14
Insert keypad
cable
1) Link keypad cable and keypad as
2) put the ksypad into the interface of
front bezel as picture 2
790061500000R
PCBA,KEYPAD
BOARD,LE1983-
X10 ROHS
S15
Fix back
cover
Check if back cover is fixed properly 501020225702R
BACK COVER,W/O
DVI SPK
,BLACK,LE18K3-AU
picture 2 right
s
p
eaker
Picture 1 left
speaker
1
2
