10
Getting Started

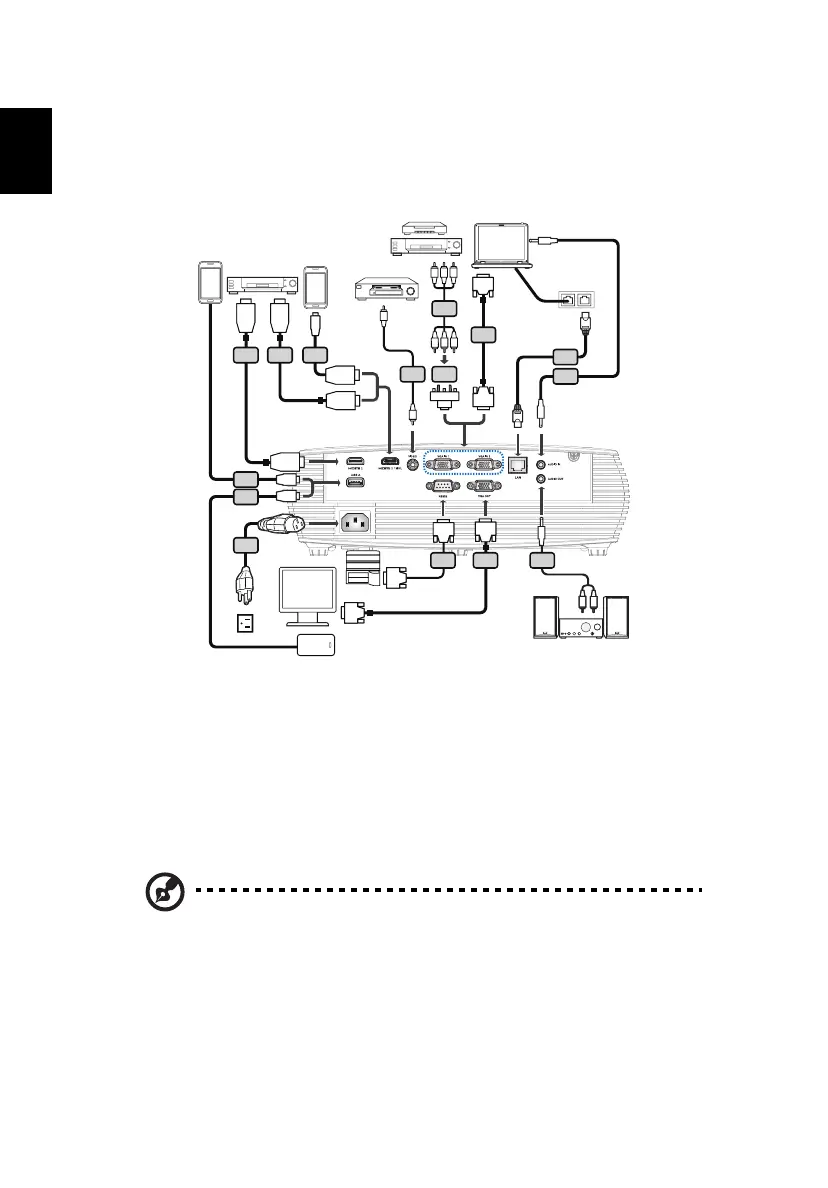

Connecting the Projector
Note 1: To ensure the projector works well with your computer,
please make sure the timing of the display mode is compatible
with the projector.
Note 2: Functions vary depending on model definition.
Note 3:
USB cable needs powered extender if the length is over 5 m.
Note 4: Some smartphones require a converter (supplied by
smartphone maker) to enable the MHL function.
Note 5: USB DC 5V out connector support 5V/2.0A power output
for power bank charging only when MHL source is not detected.
Note 6: VGA OUT loops through for VGA IN 1 only.
# Description # Description
1 Power cord 7 VGA to component/HDTV adapter
2 USB cable for charging device 8 VGA cable
3 HDMI cable 9 LAN cable
4 MHL cable (MicroUSB to HDMI) 10 Audio cable Jack/Jack
5 Composite video cable 11 Audio cable Jack/RCA
6 3 RCA component cable 12 RS232 cable
RS232
RS232
HDTV adapter
R
BG
RBG
D-Sub
D-Sub
HDMI
HDMI
HDMI
HDMI
R
W
D-Sub
D-Sub
RS232
8
12
1
11
8
6
7
MHL
3
10
HDMI
USB
Y
Y
3
2
2
4
5
9
Audio output
DVD player
Power Bank
DVD player, Set-top Box,
HDTV receiever
Smart Phone
Internet
Video output
