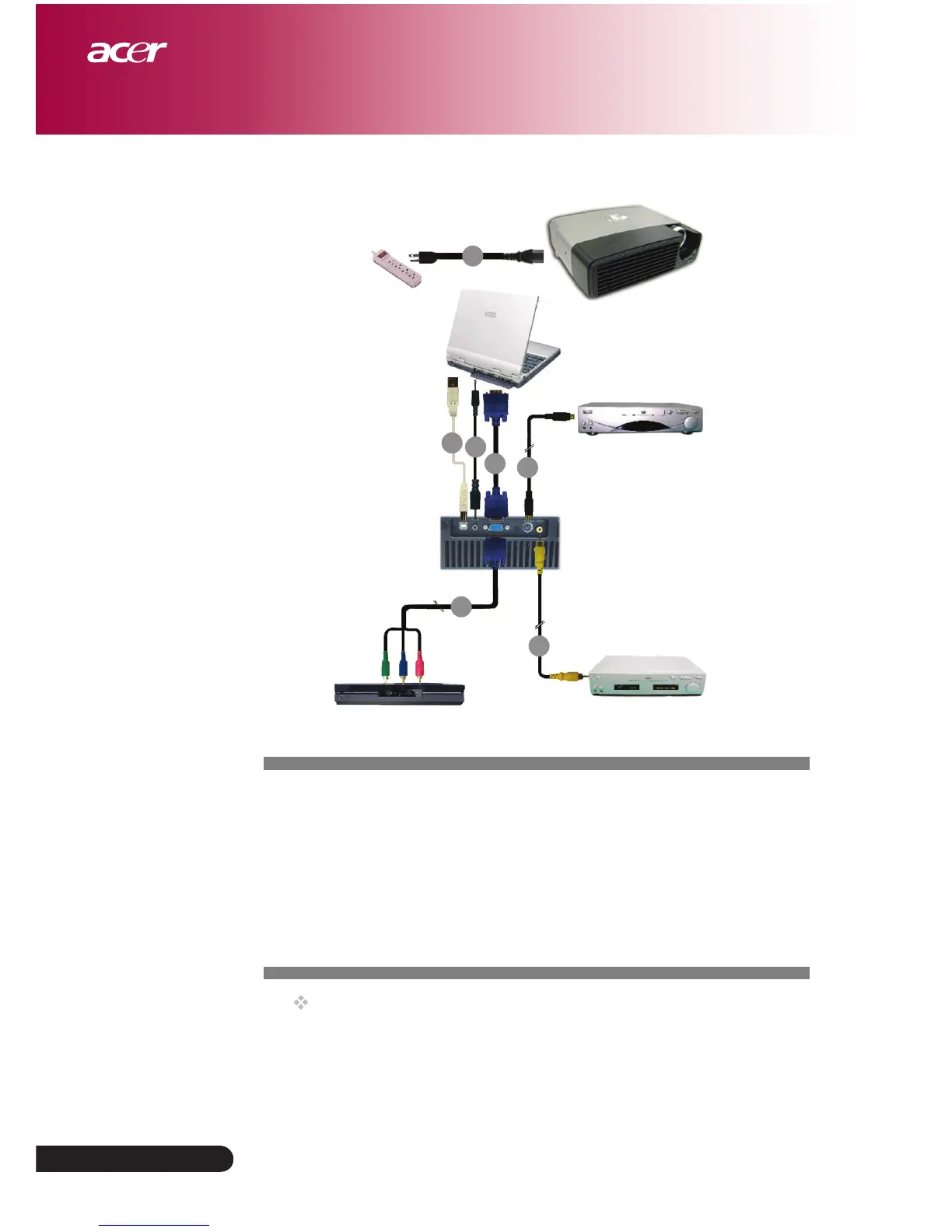

Connecting the Projector
Installation
1.............................................................................................. Power Cord
2. .................................................................................................... VGA Cable
3. .............................................................................. Composite Video Cable
4. ..................................................................................................... USB Cable
5. ............................................................................................... S-Video Cable
6. ......................................................................... Audio Cable Jack/RCA
7................................................................. VGA to Component / HDTV
To ensure the projector works well with your computer, please
set the display mode of your graphic card less than or equal to
800 x 600 resolution. Make sure the timing of the display mode
is compatible with the projector. Refer to the “Compatibility
Modes” section on page 33.
1
7
6
5
4
2
3
DVD Player,
Settop Box,
HDTV receiver
S-Video Output
Video Output
USB
RGB
