25
Chapter 3

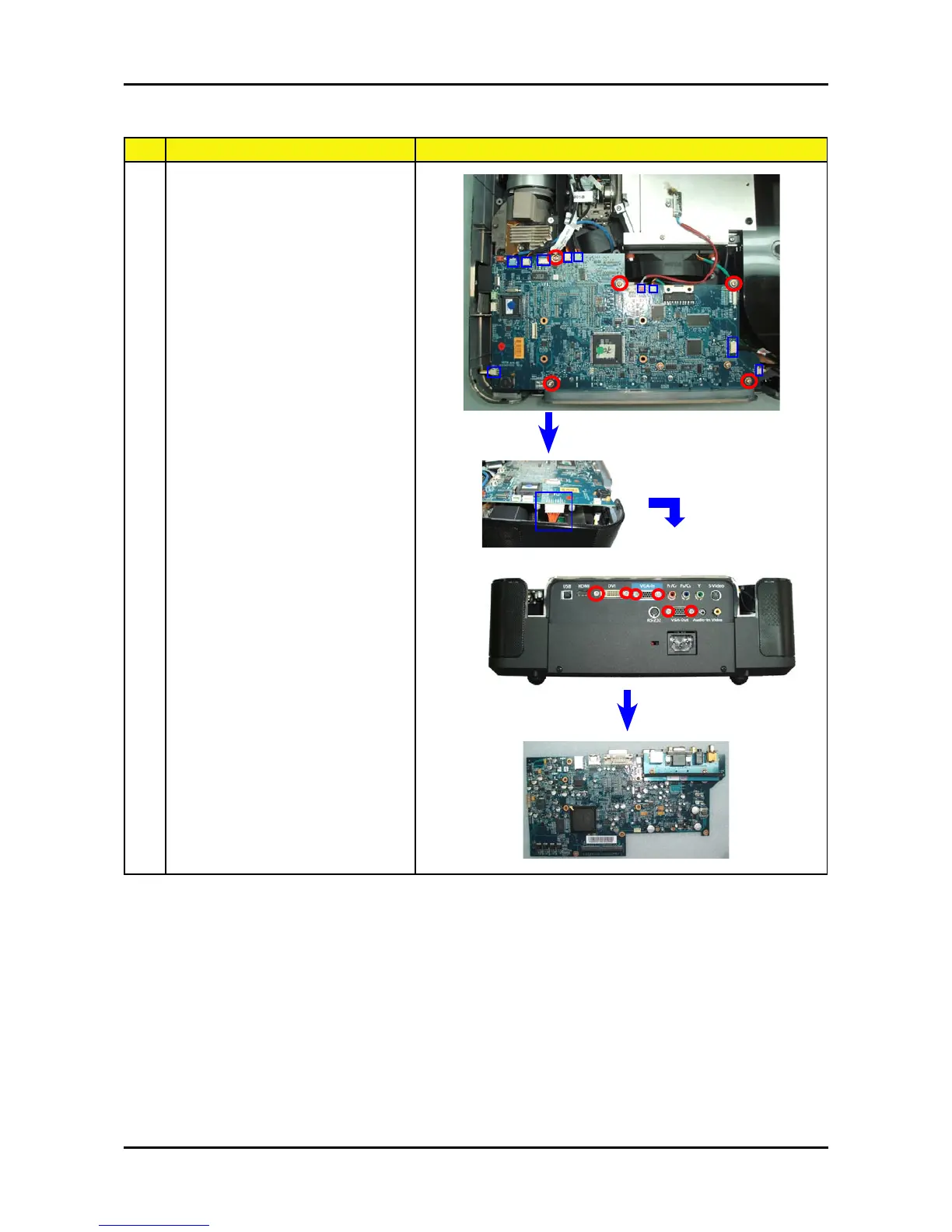

3. Remove Main Board &
Audio Board
No
Procedure
1
Unscrew 5 screws, unplug 10
connectors and 1 connector
in the Bottom; then, unscrew
6 hex screws to remove the
Main Board &
Audio Board.
