Removing the Heat Sink Fan Assembly
WARNING:The heat sink becomes very hot when the system is on. NEVER touch the heat sink with any metal
or with your hands.

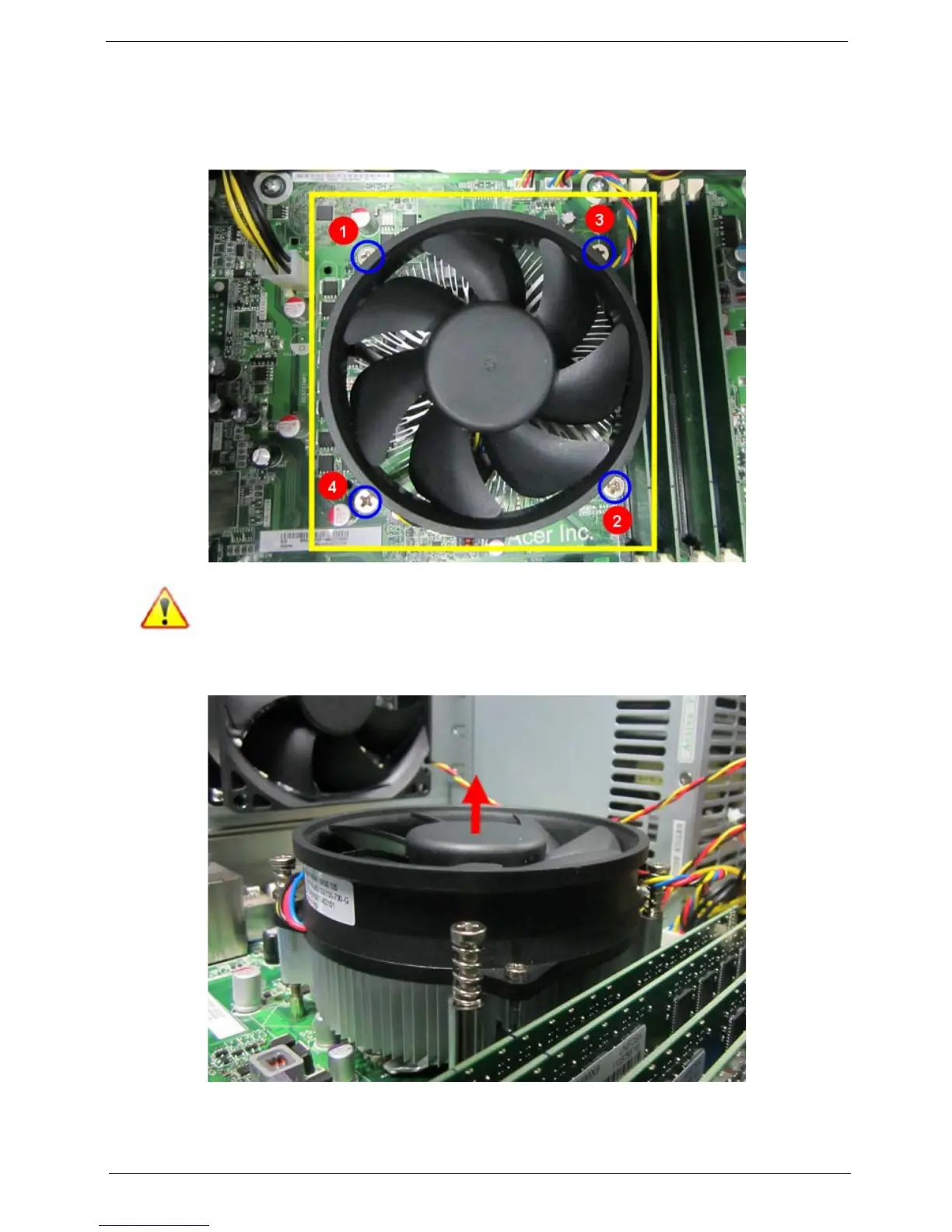

1. Use a long-nosed screwdriver to loosen the four screws on the heat sink, in the order as shown below.
Note:CPU Fan has been highlighted with the yellow rectangle as above image shows.Please detach the CPU
Fan and follow local regulations for disposal.
2. Lift the heat sink fan assembly away from the mainboard.
