Removing the Mainboard

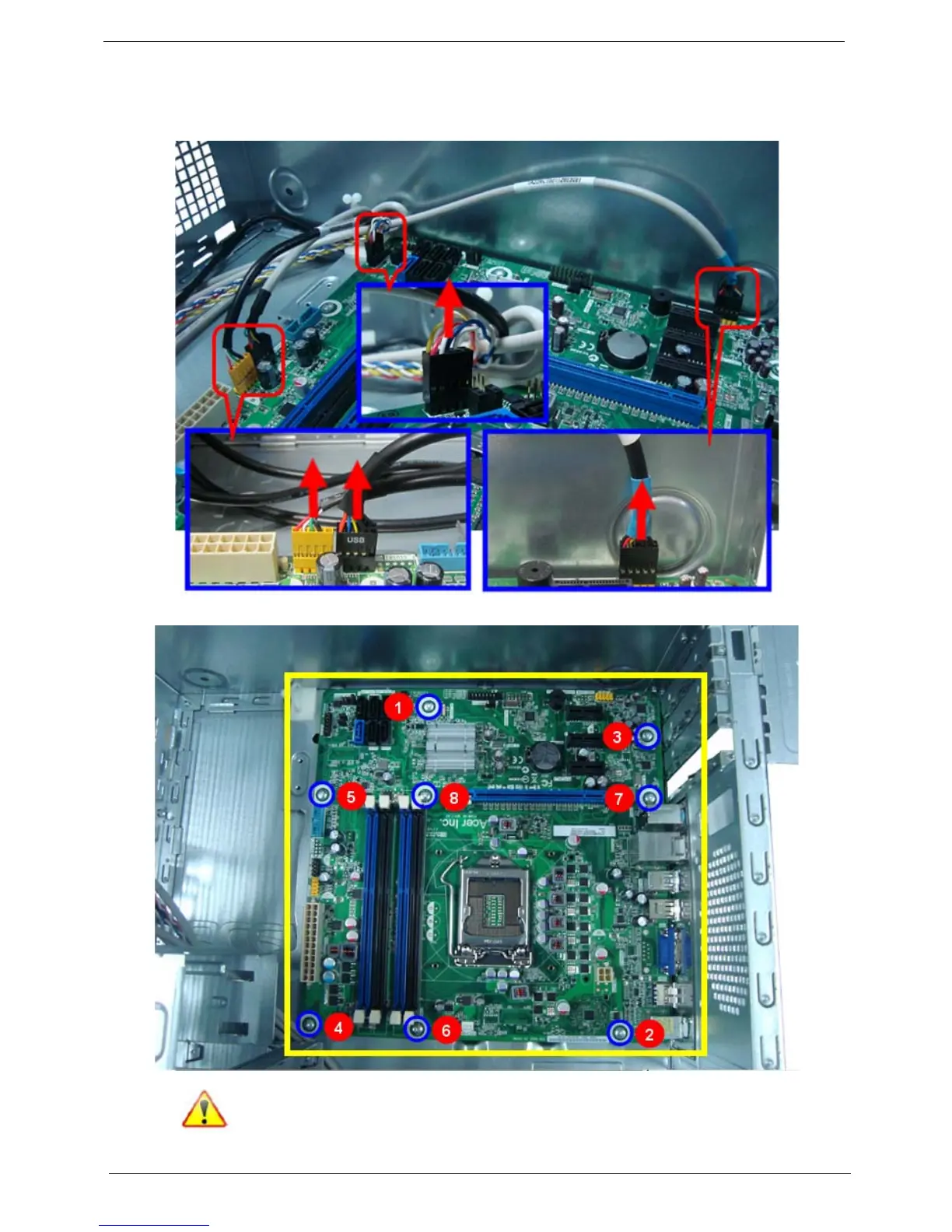

1. Disconnect the front panel cable, front audio cable, USB cable and card reader cable from the main
board, then take out the these cables from the cable retention clip.
2. Remove the eight screws that secure the mainboard to the chassis.
Note:Circuit boards >10 cm² has been highlighted with the yellow rectangle as above image shows.
Please detach the Circuit boards and follow local regulations for disposal.
