Chapter 3 56

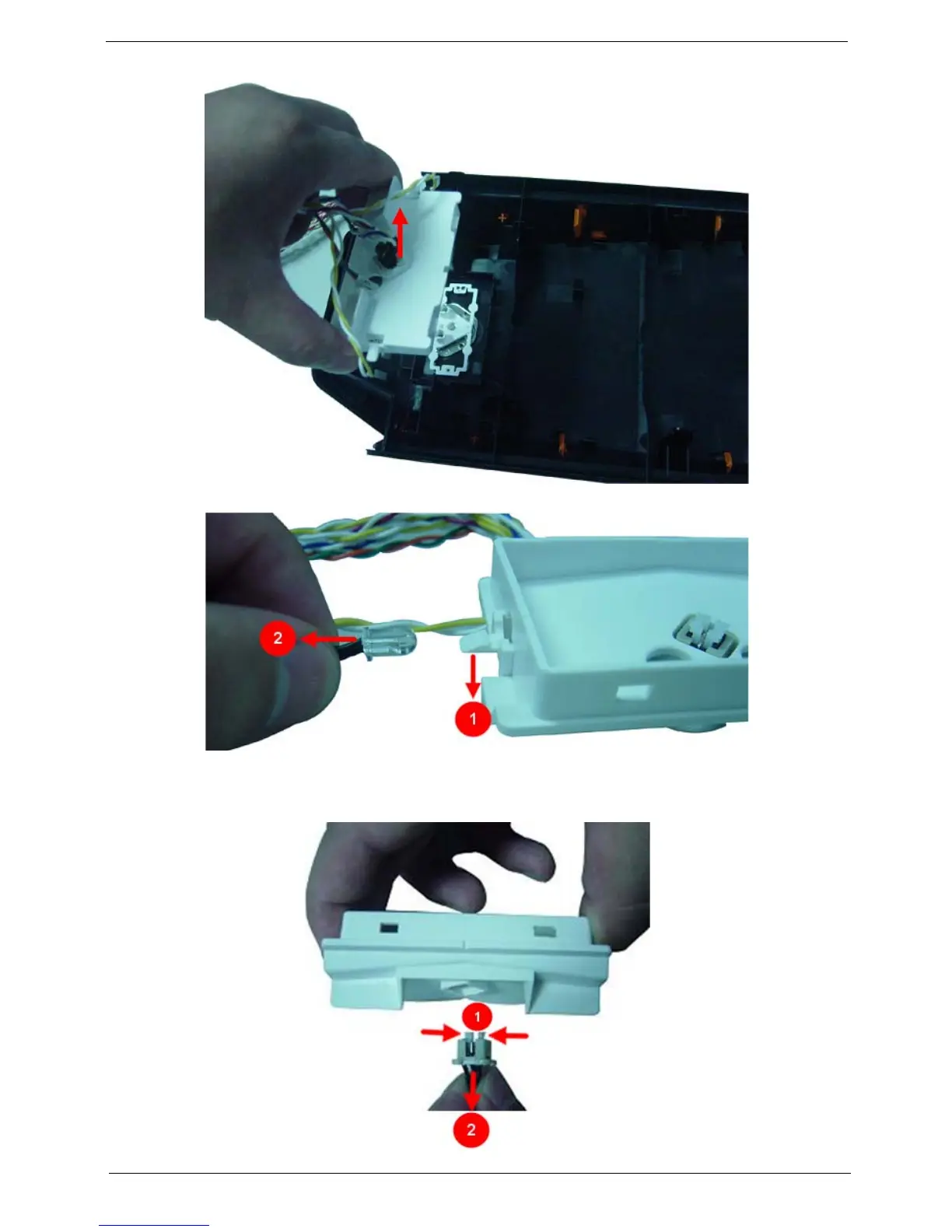

4. Separate the power switch and LED cable assemble from the top cover.
5. Release the locking tabs (1) and gently pull out the power LED cable (2).
6. Gently pull out the other power LED cable with the same way.
7. Grasp the power switch and LED cable bracket,and Release the two locking tabs (1), pull power switch
cable out of the bracket (2).
To Next Page
