55 Chapter 3

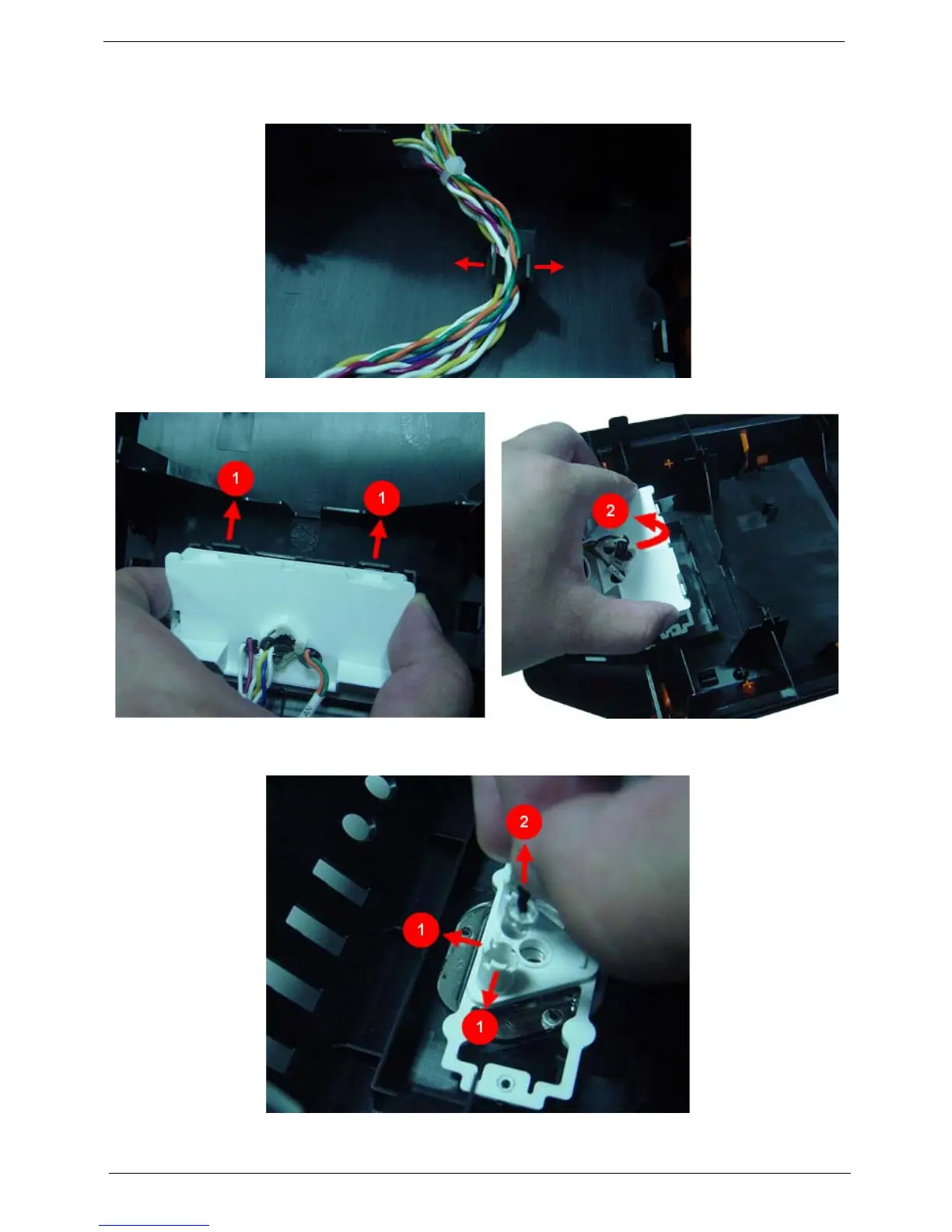

Removing the Power Switch and LED Cable Assembly
1. Release the two locking tabs and take out the front panel cable.
2. Release the two locking tabs (1) and gently take out the power switch and LED cable assemble(2).
3. Release the HDD and LAN LED.
a. Release the locking tabs (1) and gently pull the HDD LED cable out (2).
b. Gently pull out the LAN LED cable with the same way.
