Acer Predator PHN16-71 - Page 33

Disassembly Procedures 1-31

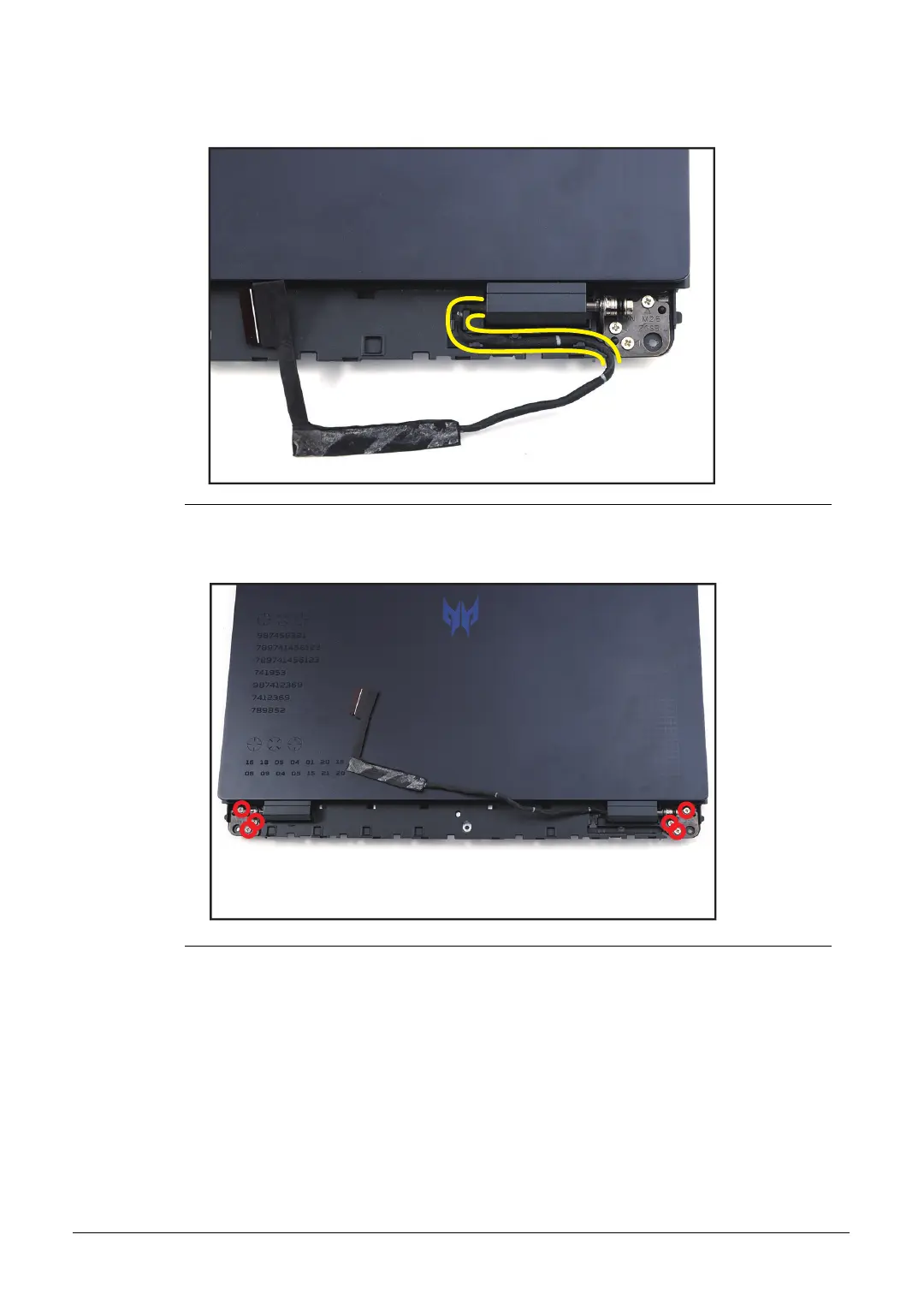

2. Unroute the LVDS cable from the cable guides (Figure 1-39).
Figure 1-39. LCD Module Removal
3. Remove six (6) screws securing the LCD hinges in place (Figure 1-40).
Figure 1-40. LCD Module Removal
