Acer RG270 - 20-Pin Color Display Signal Cable; Standard Timing Table

5
Standard timing table
NO. Mode Resolution
1 VGA 640x480 60 Hz
2 MAC 640x480 66.7 Hz
3 VESA 720x400 70 Hz
4 800x600 56 Hz
5 800x600 60 Hz
6 1024x768 60 Hz
7 1024x768 70 Hz
8 VESA 1152x864 75
Hz
9 SXGA 1280x1024 60 Hz
10 VESA 1280x720 60 Hz
11 WXGA 1280x800 60 Hz
12 WXGA+ 1440x900 60 Hz
13 WSXGA+ 1680x1050 60 Hz
14 1920x1080 60 Hz
15 1920×1080 75 Hz
SVGA
XGA
UXGA
Refresh Rate
English

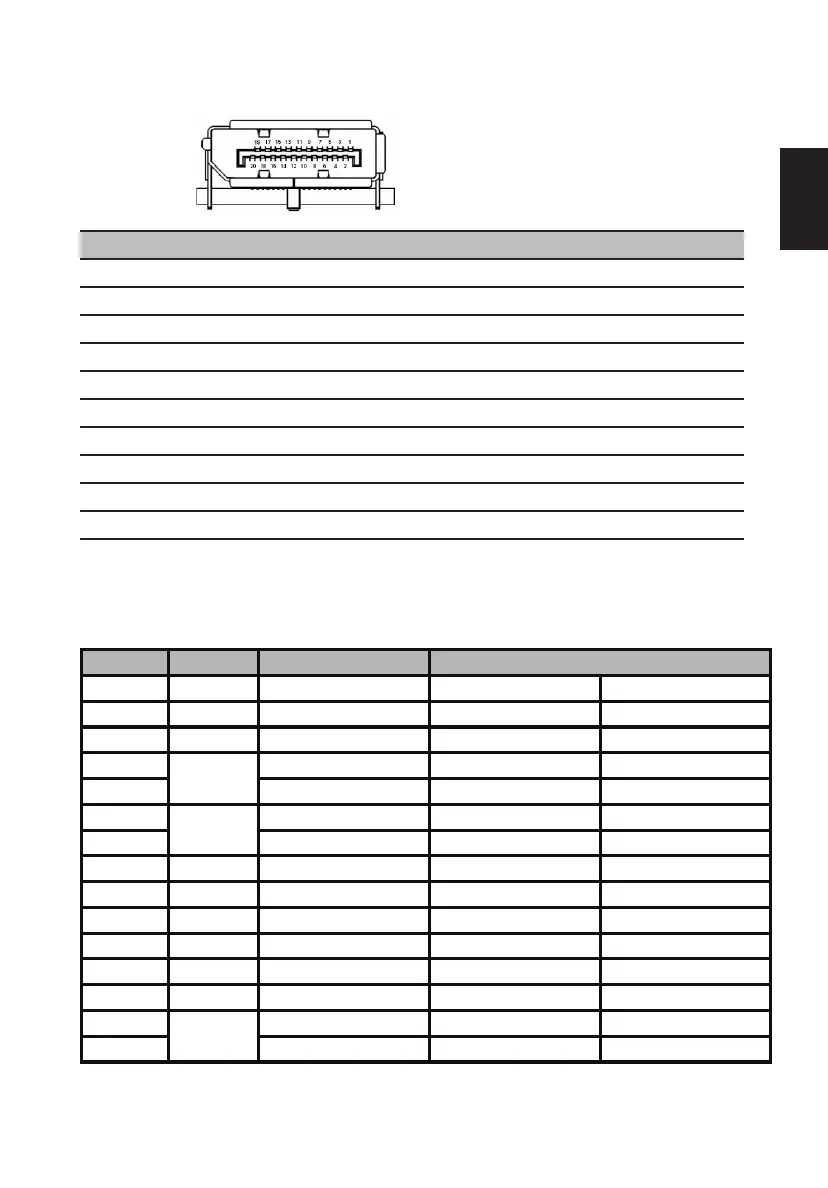

PIN No. Description PIN No. Description
1 ML_Lane 0+ 2 GND
3 ML_Lane 0- 4 ML_Lane 1+
5 GND 6 ML_Lane 1-
7 ML_Lane 2+ 8 GND
9 ML_Lane 2- 10 ML_Lane 3+
11 GND 12 ML_Lane 3-
13 CONFIG1 14 CONFIG2
15 AUX CH+ 16 GND
17 AUX CH- 18 Hot Plug
19 Return 20 DP_PWR
20-pin color display signal cable(Only DP-Inpute Model)
