Acer T230H - Additional Connector Pin Assignments; 24-Pin Color Display Signal Cable; 19-pin Color Display Signal Cable

T230H
EN-
12

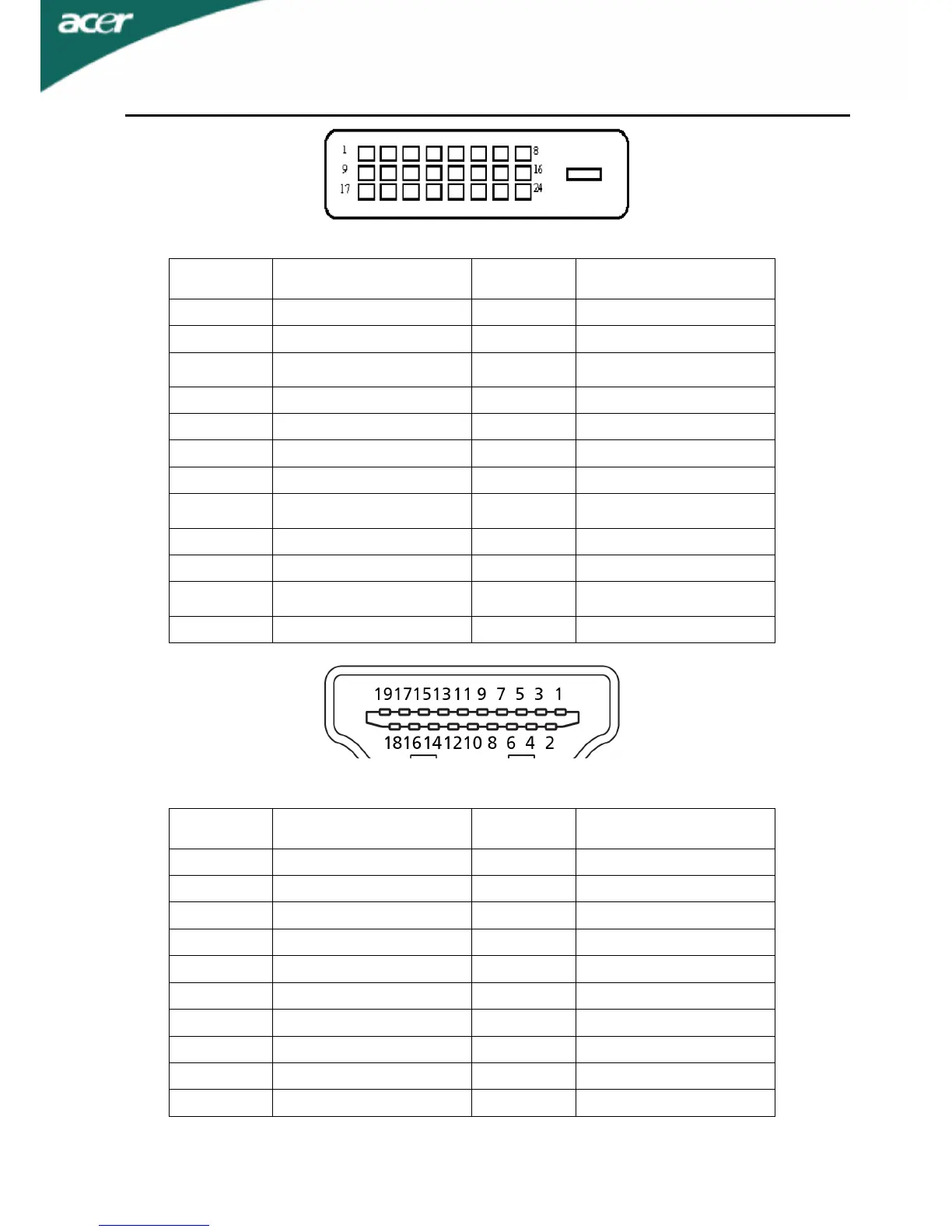

24-Pin Color Display Signal Cable
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1. TMDS Data2- 13. TMDS Data3+
2. TMDS Data2+ 14. +5V Power
3.
TMDS Data 2/4
Shield
15.
GND(return for
+5V hsync.vsync)
4. TMDS Data4- 16. Hot Plug Detect
5. TMDS Data4+ 17. TMDS Data0-
6. DDC Clock 18. TMDS Data0+
7. DDC Data 19. TMDS Data 0/5
8.
Analogue Vertical
Sync
20. TMDS Data5-
9. TMDS Data1- 21. TMDS Data5+
10. TMDS Data1+ 22. TMDS Clock Shield
11.
TMDS Data 1/3
Shield
23. TMDS Clock+
12. TMDS Data3- 24. DDC TMDS Clock-
19-pin color display signal cable
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1. TMDS Data2+ 2. TMDS Data2 Shield
3. TMDS Data2– 4. TMDS Data1+
5. TMDS Data1 Shield 6. TMDS Data1–
7. TMDS Data0+ 8. TMDS Data0 Shield
9. TMDS Data0– 10. TMDS Clock+
11. TMDS Clock Shield 12. TMDS Clock–
13. CEC 14. Reserved (N.C. on device)
15. SCL 16. SDA
17. DDC/CEC Ground 18. +5V Power
19. Hot Plug Detect
