T230H
EN-
14

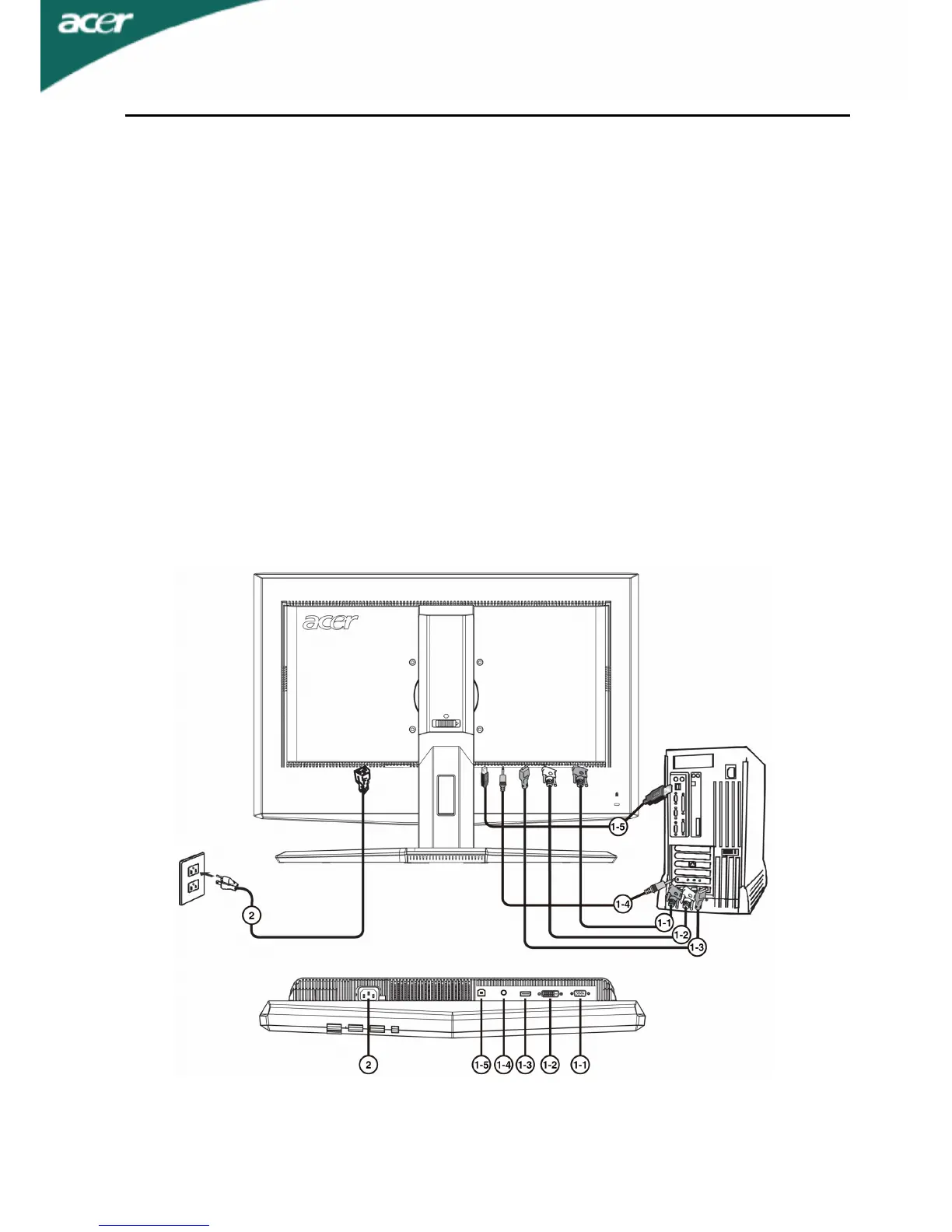

INSTALLATION
To install the monitor to your host system, please follow the steps as given below:
Steps
Make sure both the monitor and computer are powered-OFF.
1. 1-1 Connect Video Cable
Connect the VGA video cable to the computer.
1-2 Connect Digital Cable
. Connect one end of the 24-pin DVI cable to the back of the monitor and connect the other end to
the computer's port.
1-3 Connect HDMI Cable
. Connect the HDMI cable to the computer.
1-4 Connect Audio Cable
. Connect the Audio cable to the computer.
1-5 Connect USB Cable
Connect the USB cable to the computer.
2. Connect power cord
Connect the power cord to the monitor, then to a properly grounded AC outlet.
3. Power-ON Monitor and Computer
Power-ON the monitor first, then power-ON the computer.
This sequence is very important.
4. If the monitor still does not function properly, please refer to the troubleshooting section to diagnose
the problem.
