Acer TravelMate B113-M User Manual

5-23 Service and Maintenance

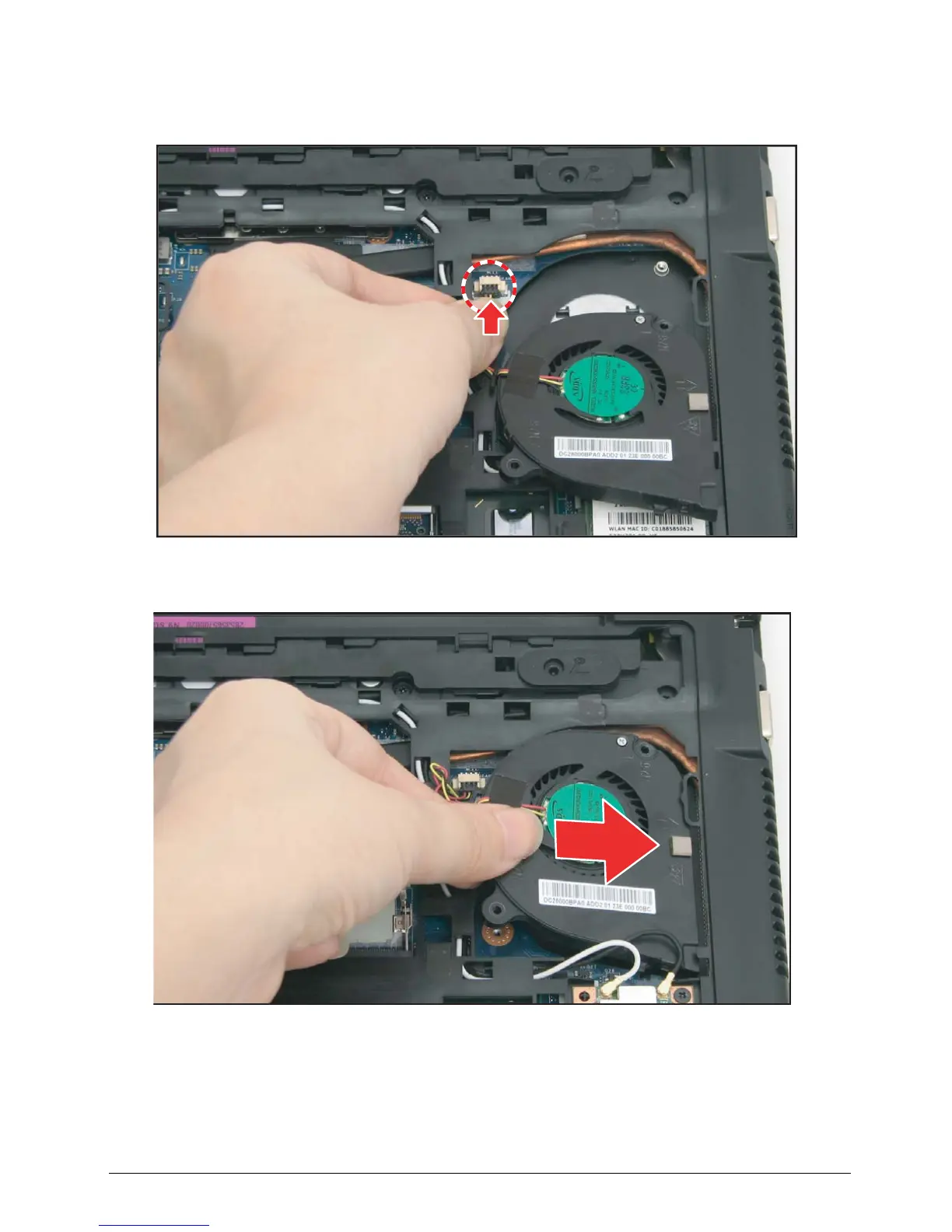

Fan Installation
1. Connect the fan cable connector to the mainboard connector.
Figure 5:26. Installing the Fan
2. Align and place the fan on the fan bay.
Figure 5:27. Installing the Fan

Acer TravelMate B113-M Specifications

General

Resolution	1366 x 768
Operating System	Windows 8 Pro
Battery Life	Up to 5 hours
Graphics	Intel HD Graphics
Battery	4-cell Li-ion
Processor	Intel Celeron
Display	11.6 inches
RAM	DDR3
Storage	500 GB HDD
