Acer V193W - bm - 19" LCD Monitor User Manual

19
Installation

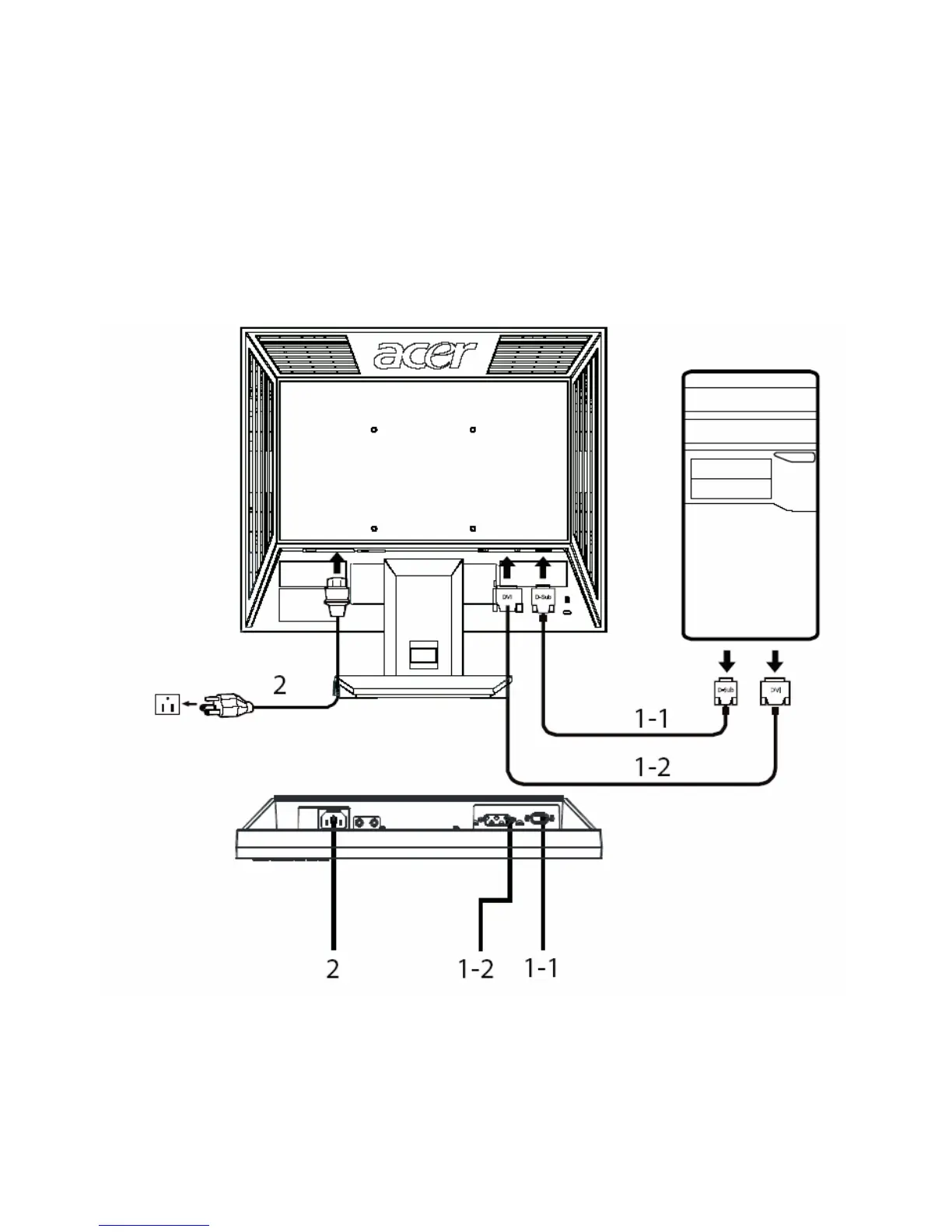

To install the monitor on your host system, please follow the steps below:
Steps
1 Connect the video cable
AMake sure both the monitor and computer are switched off.
BConnect the VGA video cable to the computer.
2 Connect the power cord
Connect the power cord to the monitor, then to a properly grounded AC outlet.
3 Turn on the monitor and computer
Turn on the monitor first, then the computer. This sequence is very important.
4 If the monitor does not function properly, please refer to the troubleshooting section to diagnose the problem.

Acer V193W - bm - 19" LCD Monitor Specifications

General

Screen Size	19 inches
Resolution	1440 x 900
Aspect Ratio	16:10
Brightness	300 cd/m²
Contrast Ratio	2000:1 (dynamic)
Response Time	5 ms
Input Connectors	VGA
Viewing Angles	170° horizontal, 160° vertical
