Acer V233H Series

EN-10

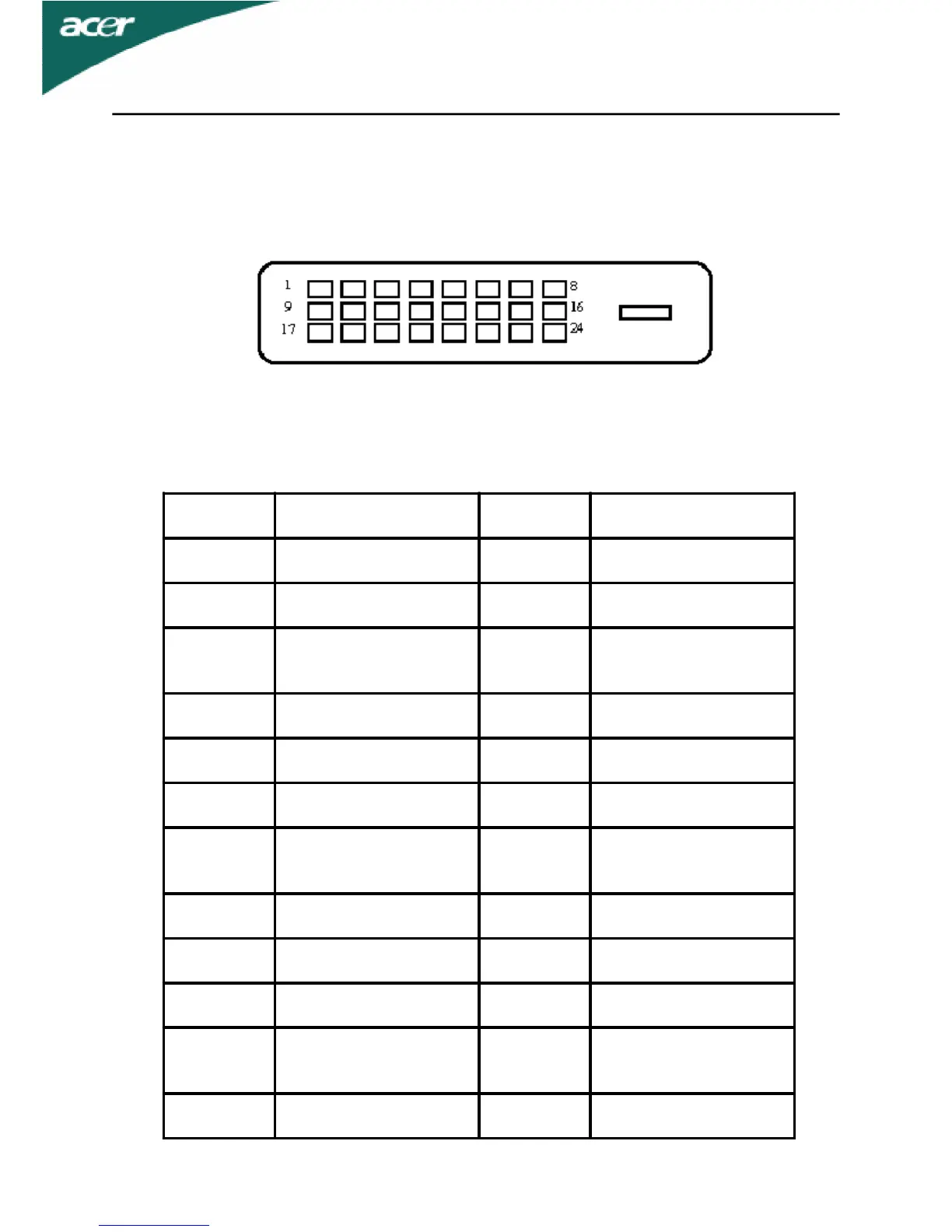

24-Pin Color Display Signal Cable
PINMeaningPINMeaning
1.TMDS Data2-13.NC
2.TMDS Data2+14.+5V Power
3.
TMDS Data 2/4
Shield
15.
GND(return for
+5V hsync.vsync)
4.NC16.Hot Plug Detect
5.NC17.TMDS Data0-
6.DDC Clock18.TMDS Data0+
7.DDC Data19.
TMDS Data 0/5
Shield
8.NC20.NC
9.TMDS Data1-21.NC
10.TMDS Data1+22.TMDS Clock Shield
11.
TMDS Data 1/3
Shield
23.TMDS Clock+
12.NC24.DDC TMDS Clock-
