Acer X193HQ Service Manual

- 27 -

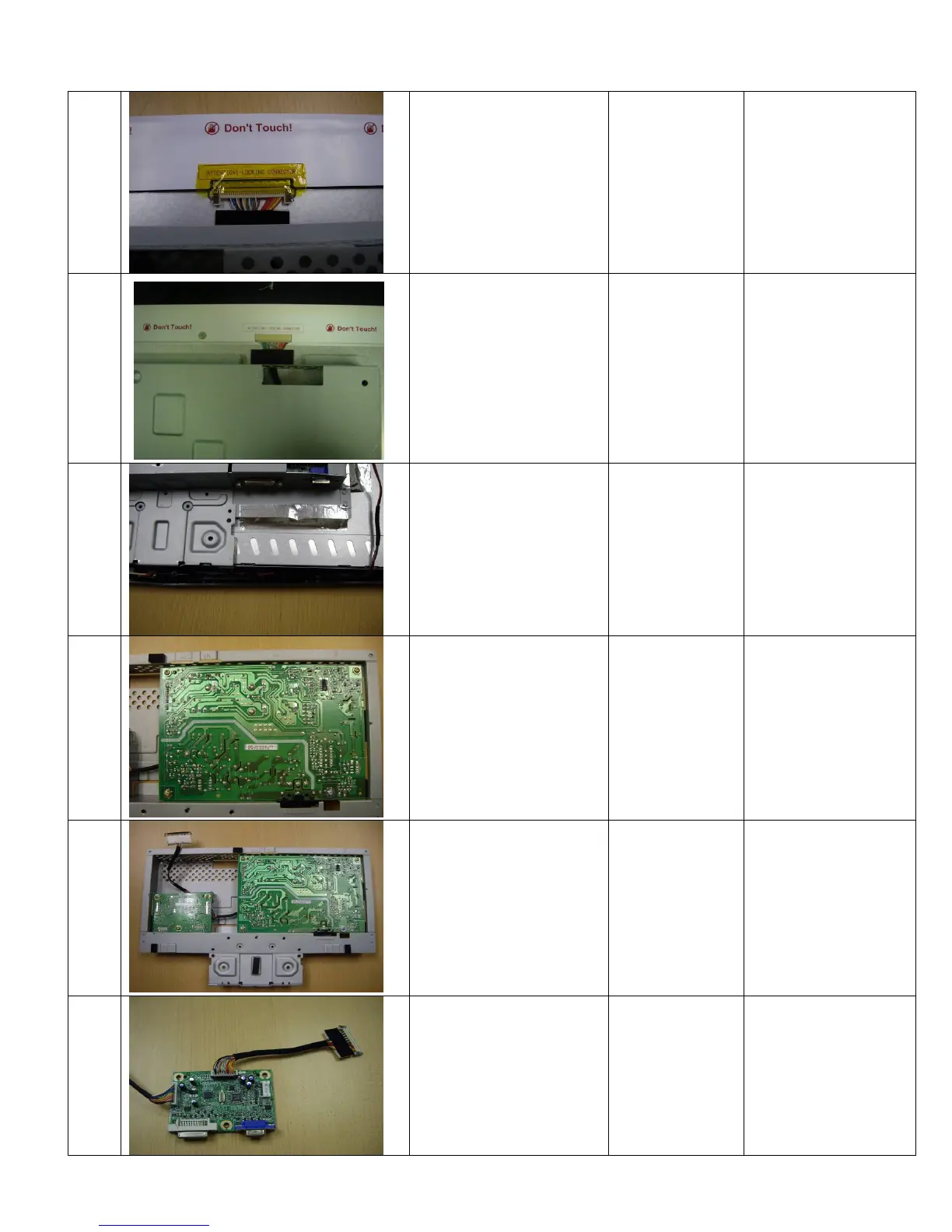

9 Tear off these Y tapes.
10 Pull out these wires.
11 Disassembled the
screws : 2/4 screws ,
based on DVI.
Screw-driver
5+0.6Kg*cm
Screw head:
＃2
12 Disassembled these
AC-socket to Main-
Chassis.
13 Disassembled these
screws which fixed the
I/F and SPS board.
 6 Screws
Screw-driver :
7+1Kg*cm
Screw head:
＃2
14 Disassemble the board
and pull out these
wires.

Acer X193HQ Specifications

General

Display diagonal	18.5 \
Display resolution	1366 x 768 pixels
Viewable size, vertical	230 mm
Contrast ratio (typical)	-
Viewable size, horizontal	410 mm
Viewing angle, horizontal	160 °
Digital vertical frequency	55 - 75 Hz
Digital horizontal frequency	30 - 80 kHz
Display brightness (typical)	300 cd/m²
HDCP	Yes
Product color	Black
Panel mounting interface	100 x 100 mm
Power consumption (typical)	17 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (without stand)	163.7 mm
Width (without stand)	454 mm
Height (without stand)	334.7 mm
Weight (without stand)	3600 g
