Acer X203H

- 24 -
4

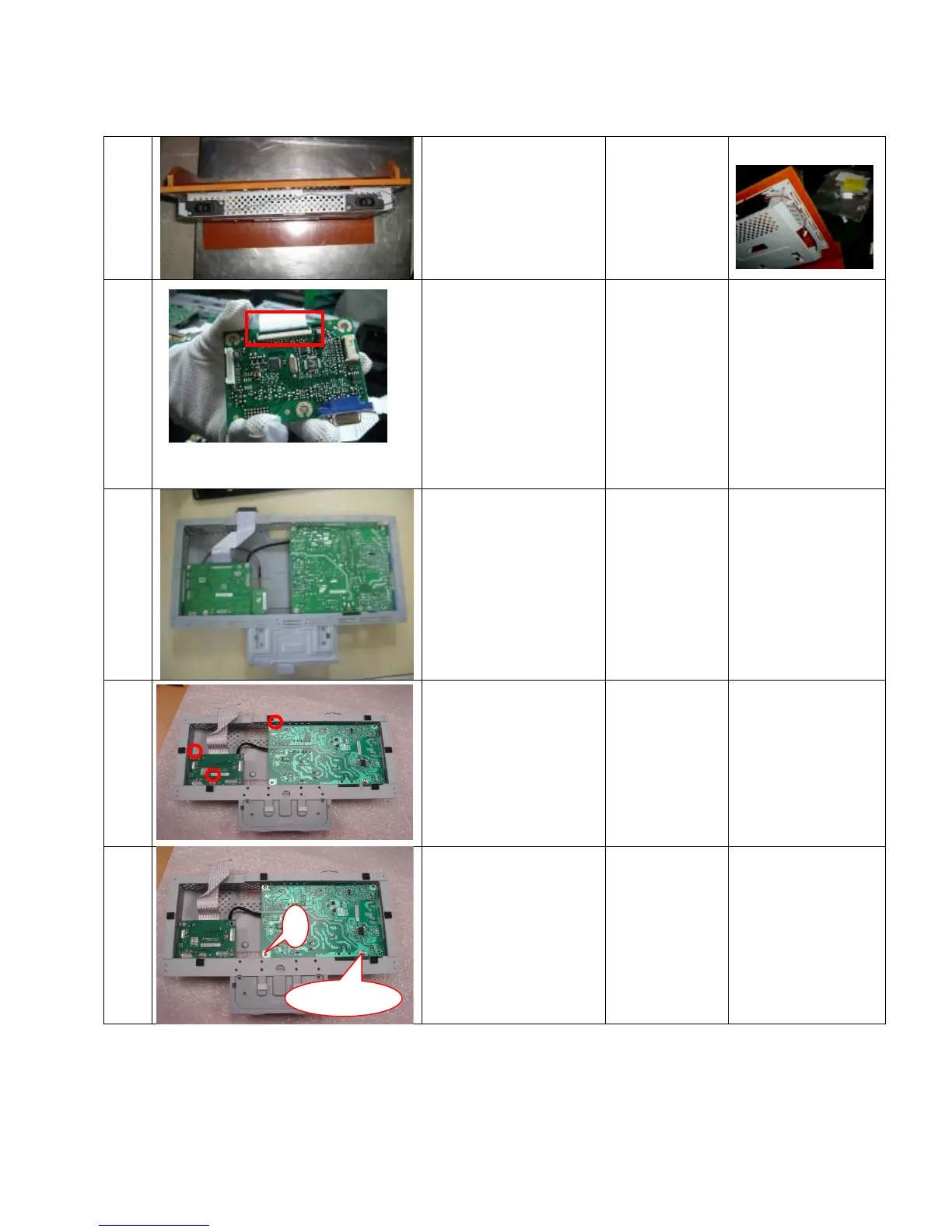

Assemble the SPK to
the main-SHD, the
correct position
reference on the
picture, then the lock 4
screws to fasten it.
Screw-driver
Keep the ware in.
5
Assemble the FFC to
the I/F, the correct
position reference on
the picture
Without the gap
within
6
Assemble the PCBA to
Main-SHD
7
Lock 3 screws on the
PCBA board with this
order.
Screw-driver
8
Lock 2 screws on the
SPS board with order.
Screw-driver
1

