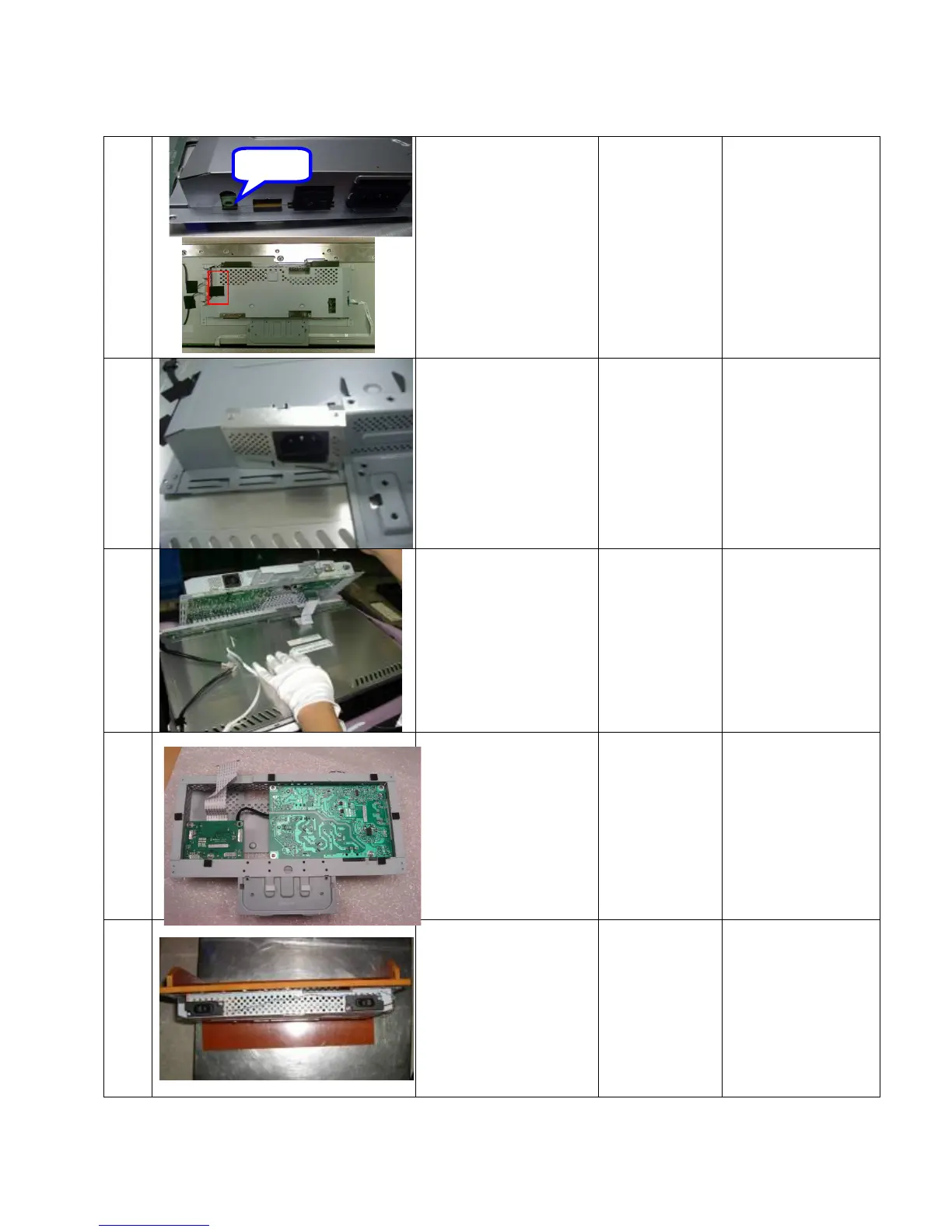

- 32 -
8
Tear down the Mylar
and the tap
9
Disassembled the AC-
soc shielding .
10
Unlock the LVDS wires.
11
Disassembled the
PCBA shielding : 5
screws
Screw-driver
12
Disassembled the SPK
shielding : 4 screws
Screw-driver
Mylar
