Acer X203H

- 65 -
M3*1.34P*8L B-ZN 5
14
8F.5A224.6R0
SCRW MACH FLAT M3*5L
ZN
ZN METAL Side
mount:3~4
Other: 4±0.6
M3*0.5 #2
15
8F.00010.161
SCRW TAPTILE TRS
W/EXT M4*8L
NI METAL
10±1.0 M4*0.7 #2
(B) SPECIAL SCREW TORQUE SPEC.
ITEM
P/N DESCRIPTION
MOUNTING
MATERIAL
TORQUE
(KG-CM)
HOLE SIZE
(MM)
Screw
Head
*SCREW Q’TYPE AND POSITION
REFERRED TO C328.
*NOTES:
1. (A)STANDARD SCREW TORQUE
SPEC.
2. (B)SPECIAL SCREW TORQUE SPEC.
3. T: TAPPING SCREW.
4. M: MACHING SCREW.

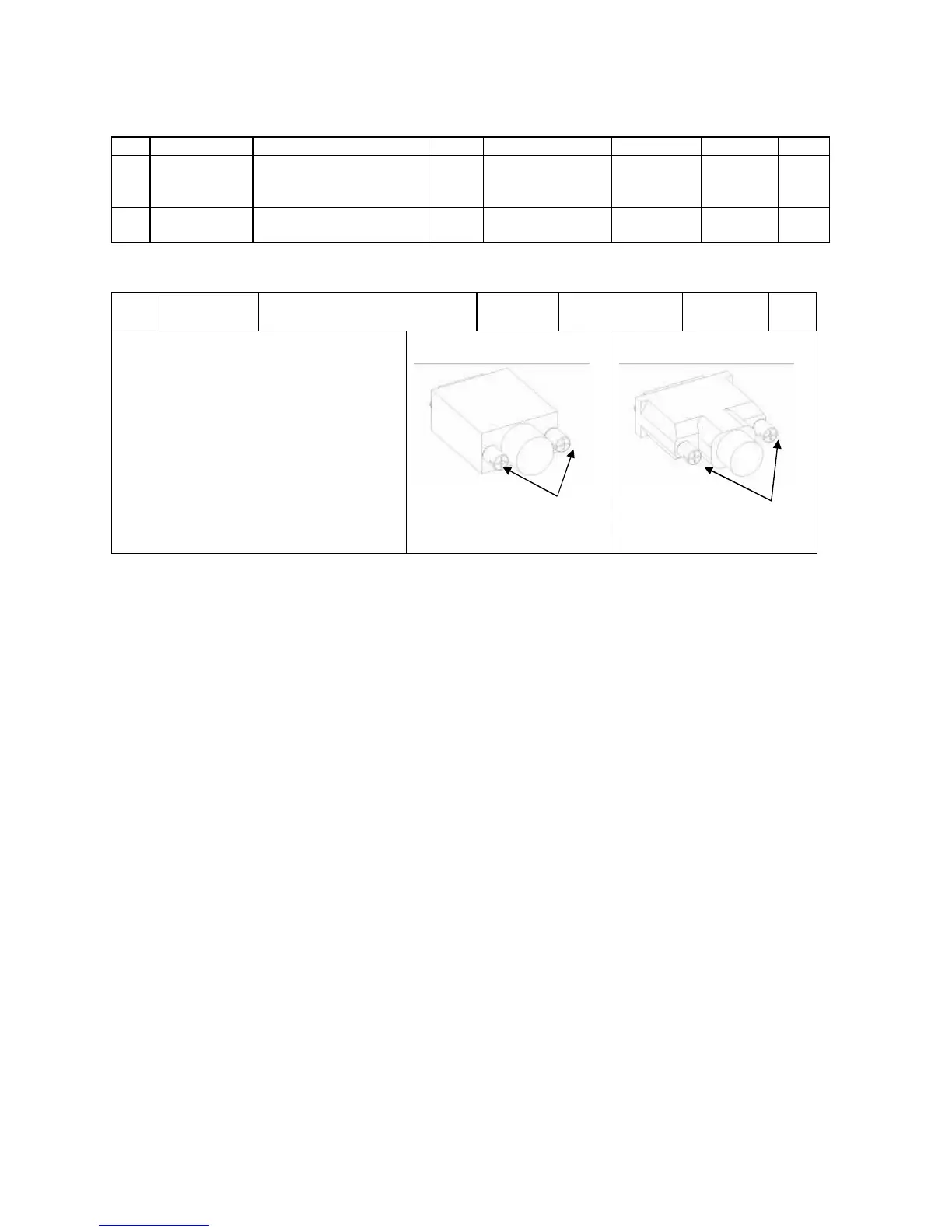

D-SUB Connector
SCREW TORQUE SPEC.
SCREW TORQUE: 1.2±0.3
(KG-CM)
DVI Connector
SCREW TORQUE SPEC.
SCREW TORQUE :
1.2±0.3(KG-CM)
SCREW D-SUB
SCREW DVI
