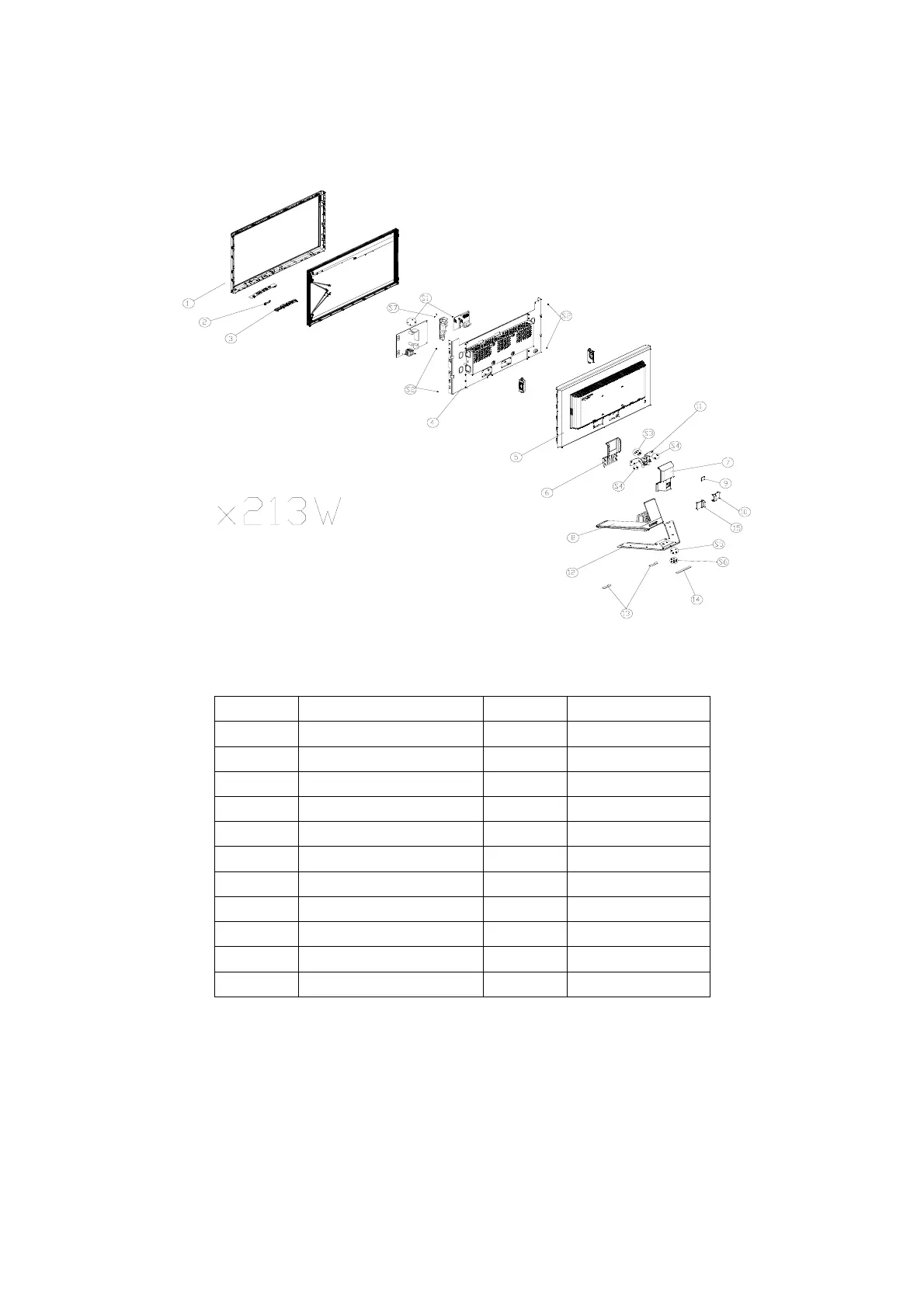

Exploded Diagram (Model: X213W)
Item Description Item Description
1 bezel 12 BASE BRACKET
2 LENS 13 Ruber Foot-1
3 key button 14 Ruber Foot-2
4 MAINFRAME 15 HINGE COVER R
5 REAR COVER DVI(22") S7 SCREW
6 STAND FRONT S6 SCREW
7 STAND REAR S5 SCREW
8 BASE S4 SCREW
9 BASE BUTTON S3 SCREW
10 COVER HINGE S2 SCREW
11 HINGE S1 SCREW
