6. You're now left with the LCD screen, PSU etc.
7. Step 5 - Mark the illumination wires using the fibre tip pen – or however you wish to do so.
8. Step 6 - Remove the wires and the silver tape which holds the metal PSU case in place. You
will need to replace this when re-assembling the unit. Mark the position of the PSU case
with the fibre tip before removal.

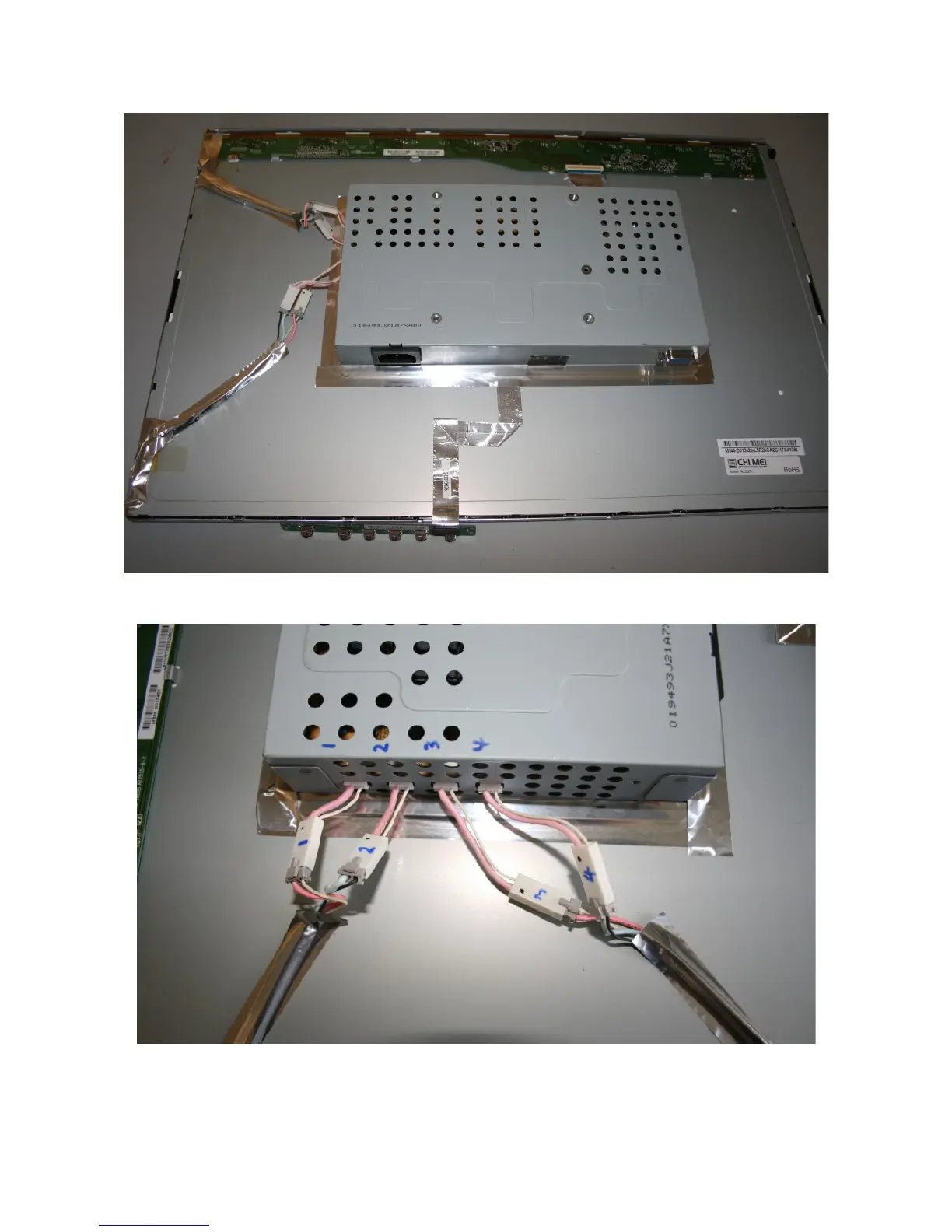

LCD & Protected PSU etc
Backlight connection, label and remove wires.
