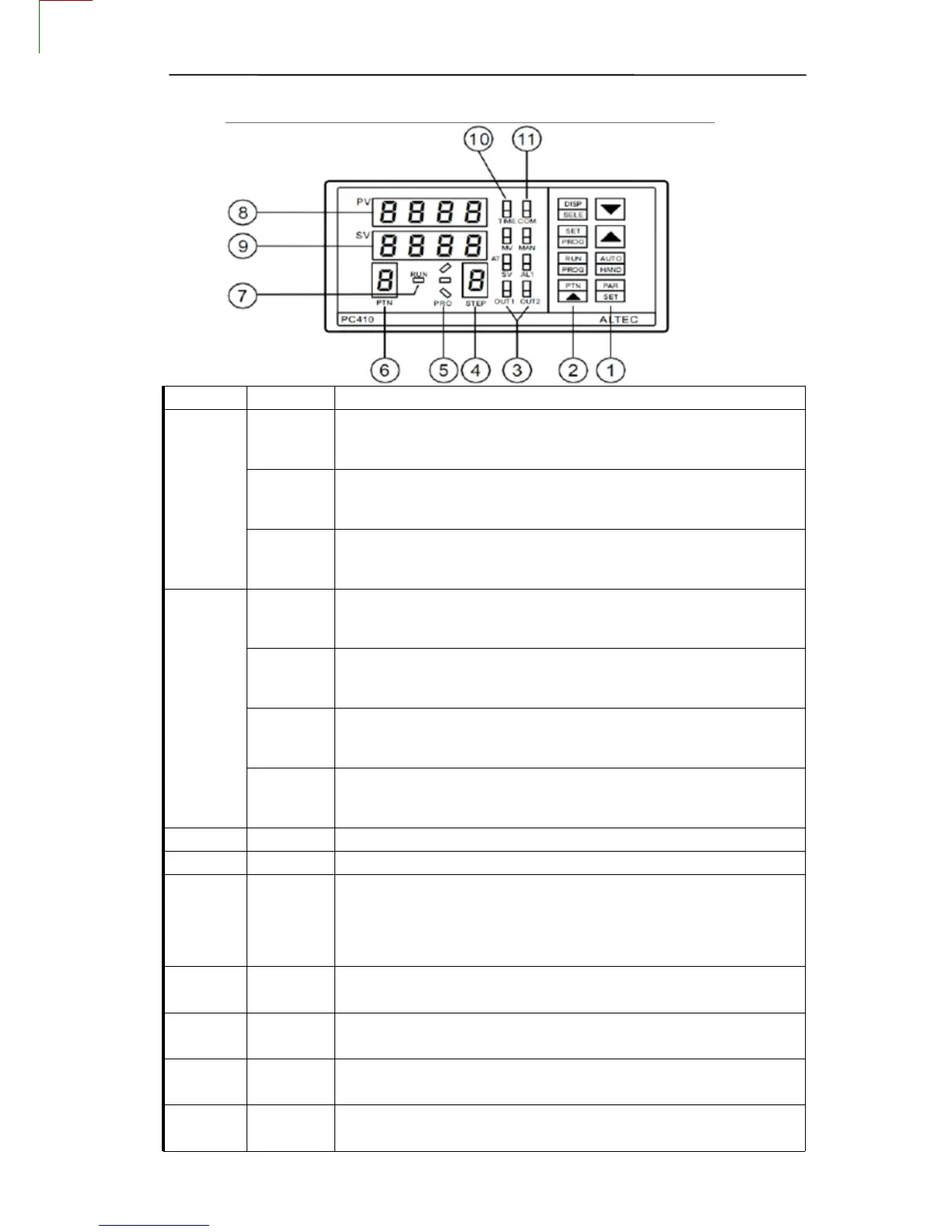

S.N. Item Functions
Parameters setting key
(Up key) Increase value
①
(Down key) Decrease value
Selects the program pattern number
Starts/hold the program, changes the mode from fixed value
control to program control
Program parameters setup
②
Changes the indication on SV/MV/TIME display
③
OUNT Output indicator
④
STEP Indicates the step number of program
⑤
PRO (Program monitor indicator)
During program control, ‘/’ is lit when the PV is rising
During program control, ‘-’ is lit when the PV is constant
During program control, ‘\’ is lit when the PV is falling
⑥
PTN (Pattern number display)
Indicates the pattern number ‘0～9’
⑦
RUN (Program control runing indicator)
The LED indicator is lit during program control
⑧
PV (PV Display)
Indicates the Process/Measured value
⑨
SV It is lit when the Setting Value(SV) is being displayed on the
lower display
深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd
LY
The sixteen segments are defined in the order: Ramp 1, Dwell period 1, Ramp 2, Dwell
period 2..., and are executed in succession.
WWW.LYBGA.COM
11
