12
Programmer/Controller General Description
The programmable controller contains an in-built setpoint generator in addition to the
controller function. This setpoint generator can produce a temperature/time profile with
10*16 segments (0910 Sets of Curves). When the program is running, the current
setpoint from the setpoint generator is fed to the control algorithm. The current setpoint is
continuously shown on the lower display.
The sixteen segments are defined in the order: Ramp 1, Dwell period 1, Ramp 2, Dwell
period 2..., and are executed in succession.

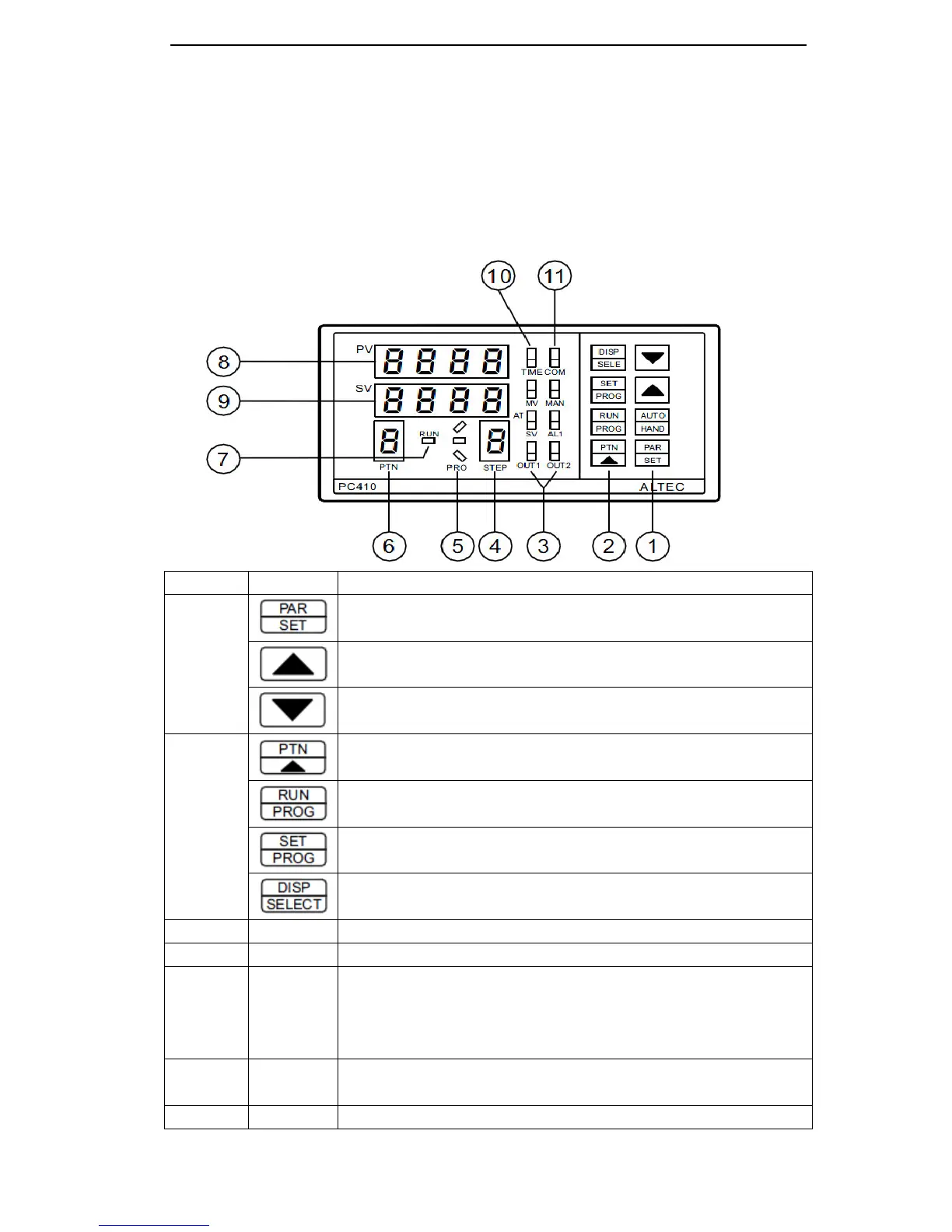

S.N. Item Functions
Parameters setting key
(Up key) Increase value
(Down key) Decrease value
Selects the program pattern number
Starts/hold the program, changes the mode from fixed value
control to program control
Program parameters setup
Changes the indication on SV/MV/TIME display
OUNT Output indicator
STEP Indicates the step number of program
PRO
(Program monitor indicator)
During program control, ‘
’ is lit when the PV is rising
During program control, ‘
’ is lit when the PV is constant
During program control, ‘
’ is lit when the PV is falling
PTN
(Pattern number display)
Indicates the pattern number ‘0
9’
RUN (Program control runing indicator)
