Hardware description


ACHI ® IR6500 BGA Rework Station is composed of upper part of Heating Components
/ Bottom Preheat Module / Bracket / Temperature Control Parts! Temperature control
Table is control the upper and lower heating, Can Simultaneously heated or first preheat,
then the upper part of heating.

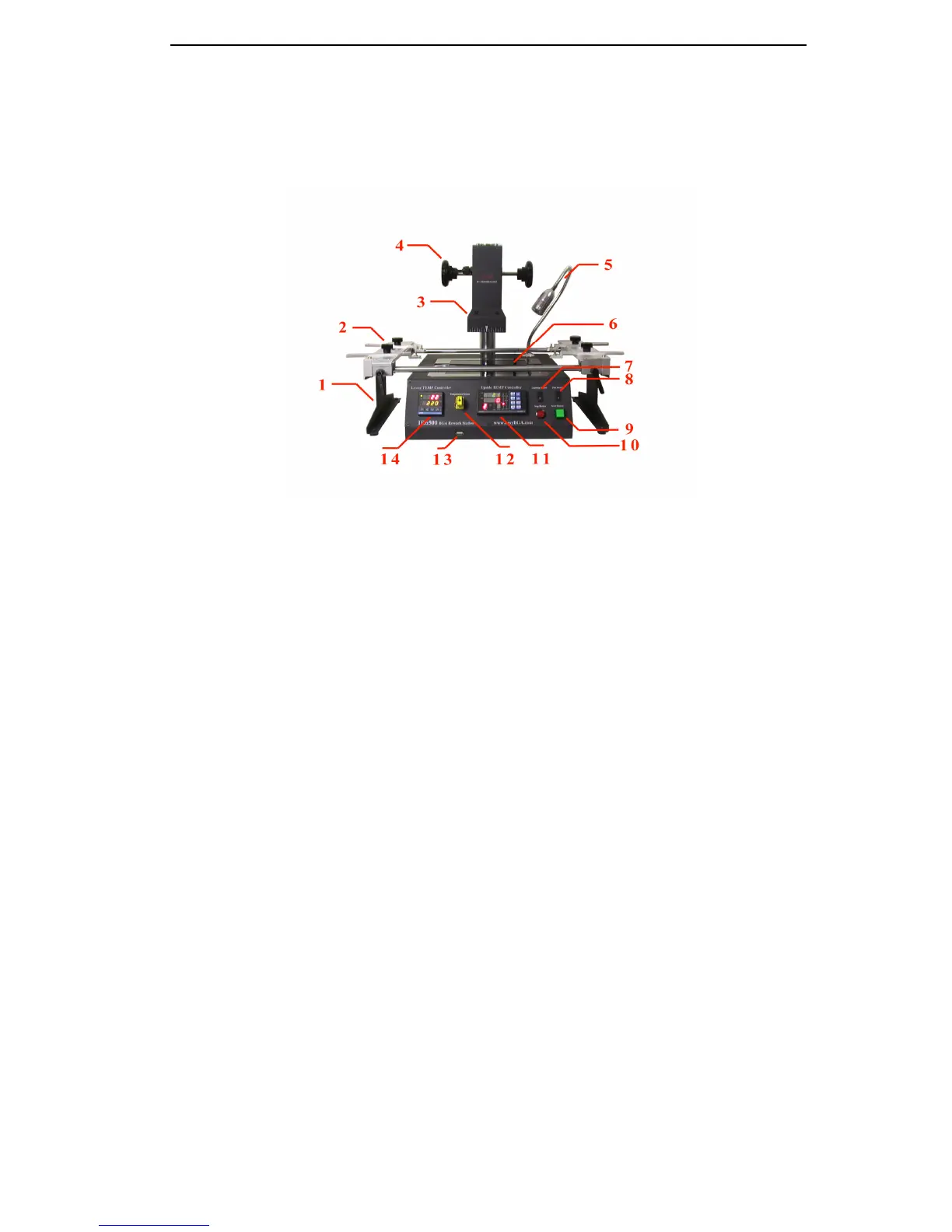

1. PCB Table
2. Abnormity pole
3. Upside Heater
4. X-Y Lifting Regulator
5. LED Auxiliary Lighting
6. Bottom Heater (Pre-Heater)
7. Lighting Switch
8. Upper fan Switch
9. Start Switch
10. Stop Switch
11. Upper Programmable Temperature Controller
12. Highly Sensitive K-temperature sensor
13. USB interface
14. Bottom Temperature Controller
