System Overview – Schematics

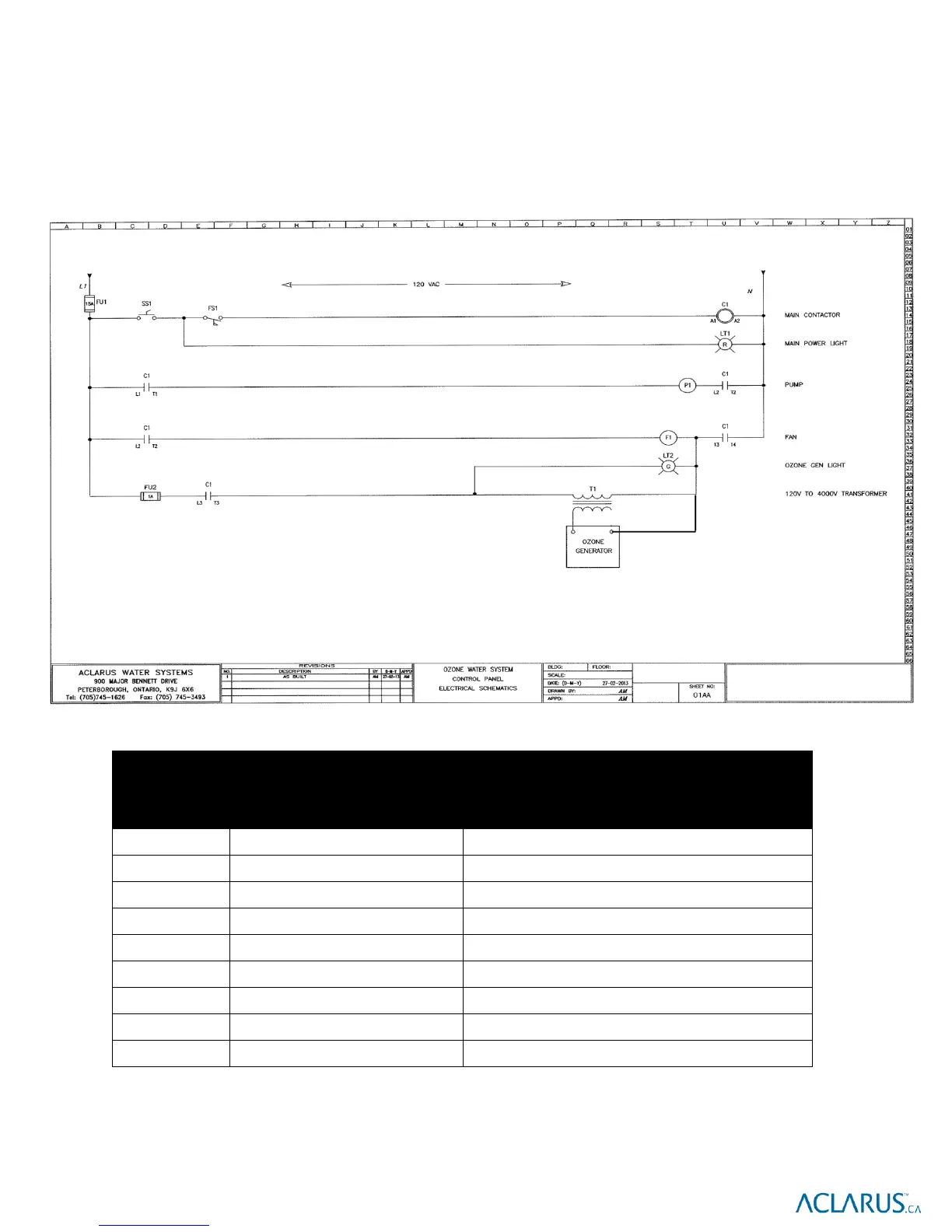

Control Panel Wiring
NOTE: CONTACT ACLARUS BEFORE SERVICING ANY ELECTRONIC COMPONENTS
Wiring Legend
Diagram #
Quantity per System
Part Description
1
2
10 plate ozone generator
2
1
High voltage coil
3
1
Cooling fan
4
1
ON/OFF switch
5
2
15 amp ceramic slow blow fuse
6
1
Power indicator light
7
1
Magnetic Contactor
8
1
Electronic pressure switch
9
1
1 6/10 amp slow blow fuse
