+20V
White - Common
Red - 0-10 VDC
Building Supplied Control
+10V
COM
AN
Dual Speed Potentiometer
Speed Select Control
A
Black
Red
White
Wired in
Field
B
Red to Red
White to White
Black to Black
Potentiometers and
speed selector can
be mounted up to
100 ft from fan.
A
Variable
1
2
3
4
5 6
7
8
9
10
1
2
3
4
5 6
7
8
9
10
Speed
B
Page 16

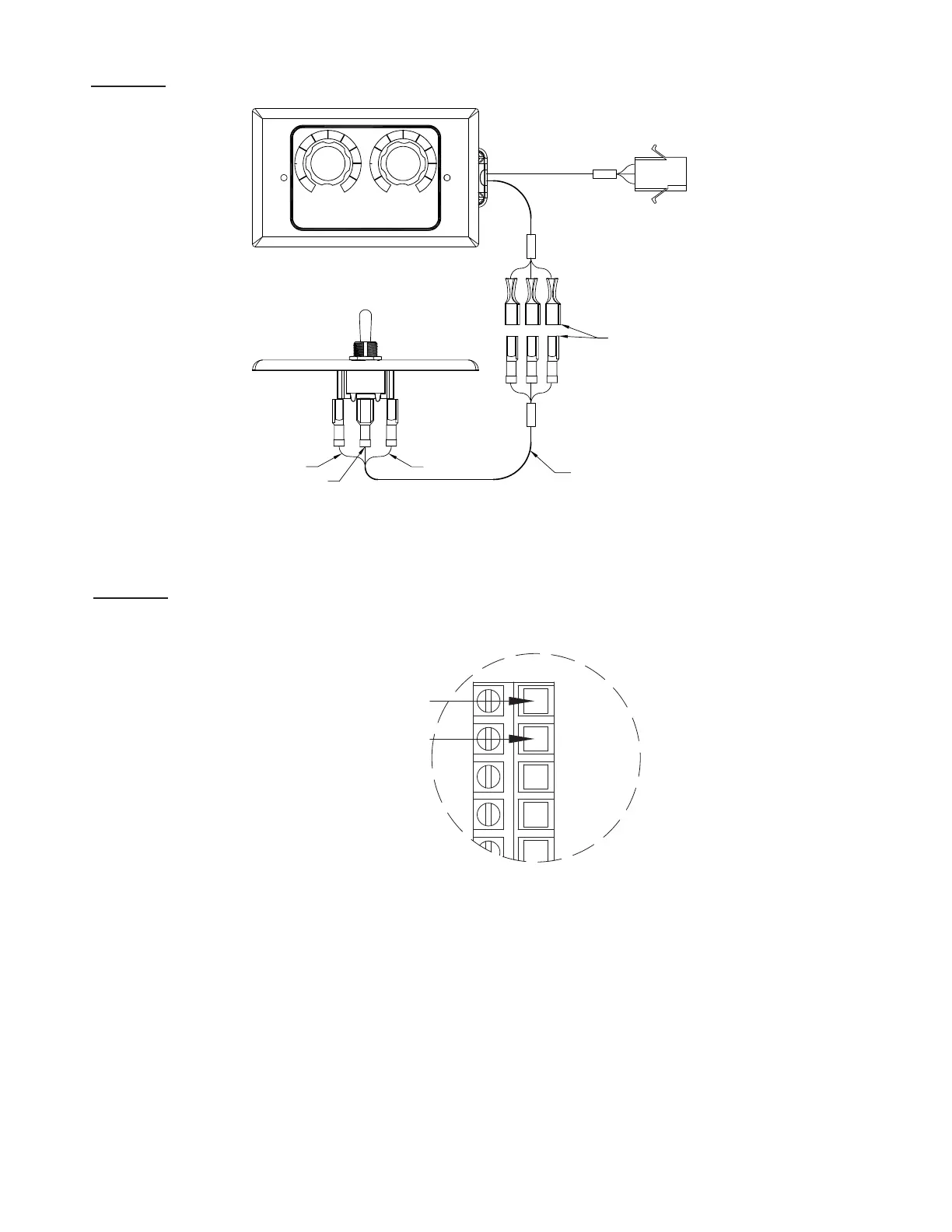

FIGURE 24
FIGURE 23
