ACME FQ - DIRECT DRIVE EXPLODED VIEW; PARTS LIST LEGEND

Page 17

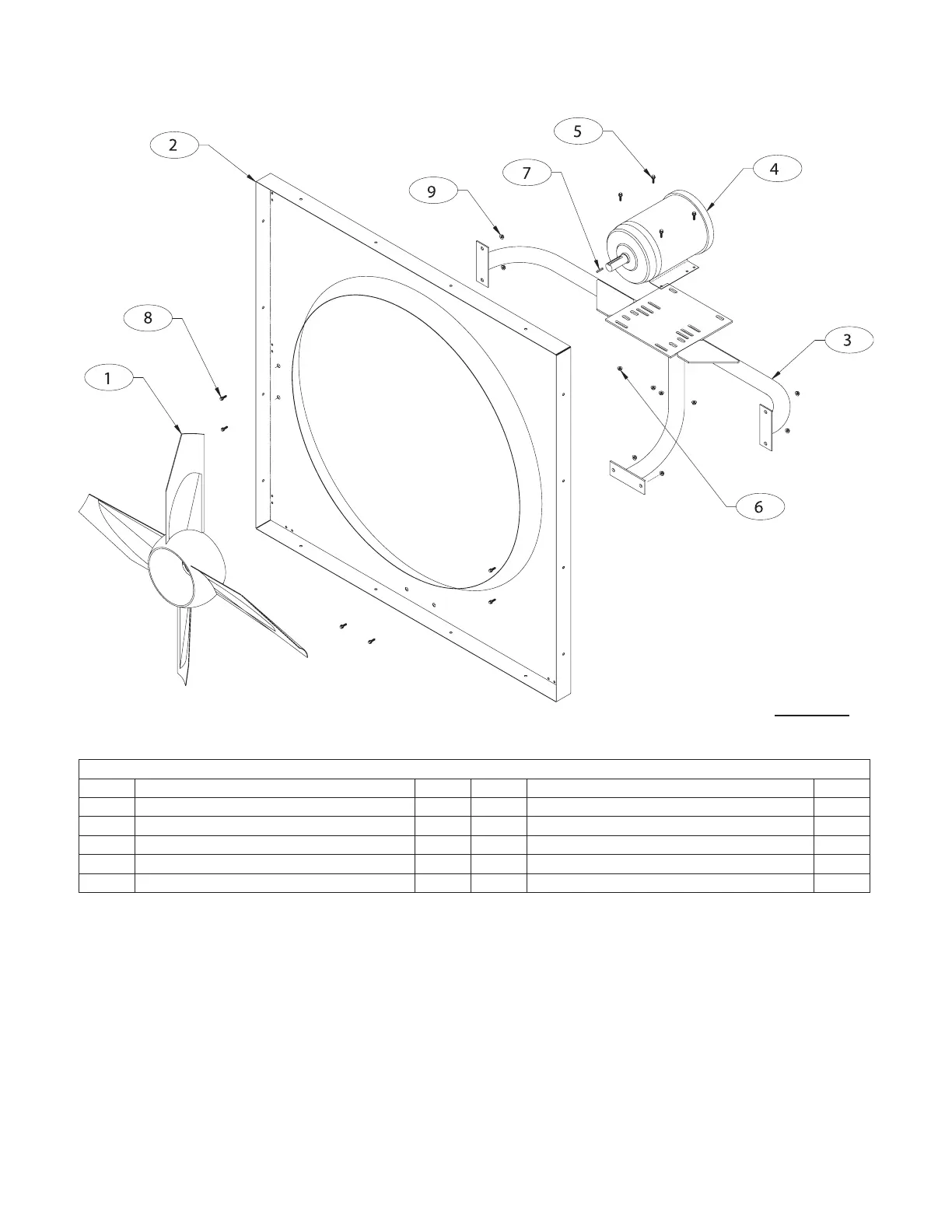

Direct Drive Exploded View
PARTS LIST LEGEND
No. Description Qty. No. Description Qty.
1 Propeller 1 6 Motor Mounting Nuts 4
2 Orice 1 7 Key 1
3 Frame Assembly 1 8 Frame Mounting Bolts 6
4 Motor 1 9 Frame Mounting Nuts 6
5 Motor Mounting Bolts 4
FIGURE 25
