ACME PIXEL LINE IP - Control Panel

- 8 -

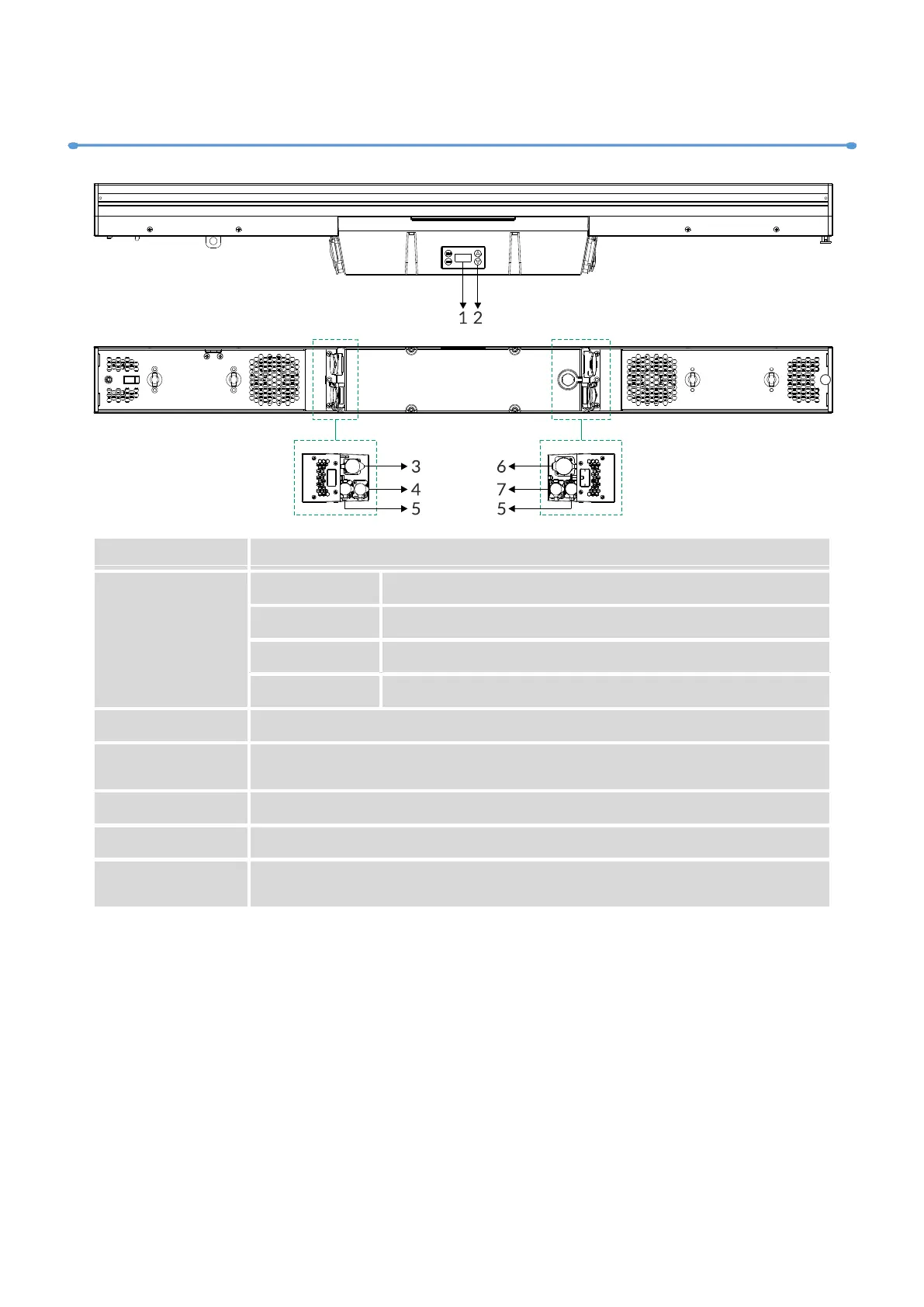

03/ Control Panel
1. Display
To show the various menus and the selected function
2. Buttons
MENU
To enter into move backward or leave the menu
 UP
To go backward to move up in the menu
 DOWN
To go forward to move down in the menu
ENTER
To perform the desired functions
3. POWER IN
To connect to supply power
4. DMX IN
For DMX512 link, use 5-pin XLR cable to link the unit and DMX
controller to input DMX signal (3-pin XLR cable is optional)
5. ETHERNET
Transfers fixture’s information to a main controller
6. POWER OUT
To connect to the next fixture
7. DMX OUT
For DMX512 link, use 5-pin XLR cable to link the next units to output
DMX signal (3-pin XLR cable is optional)
