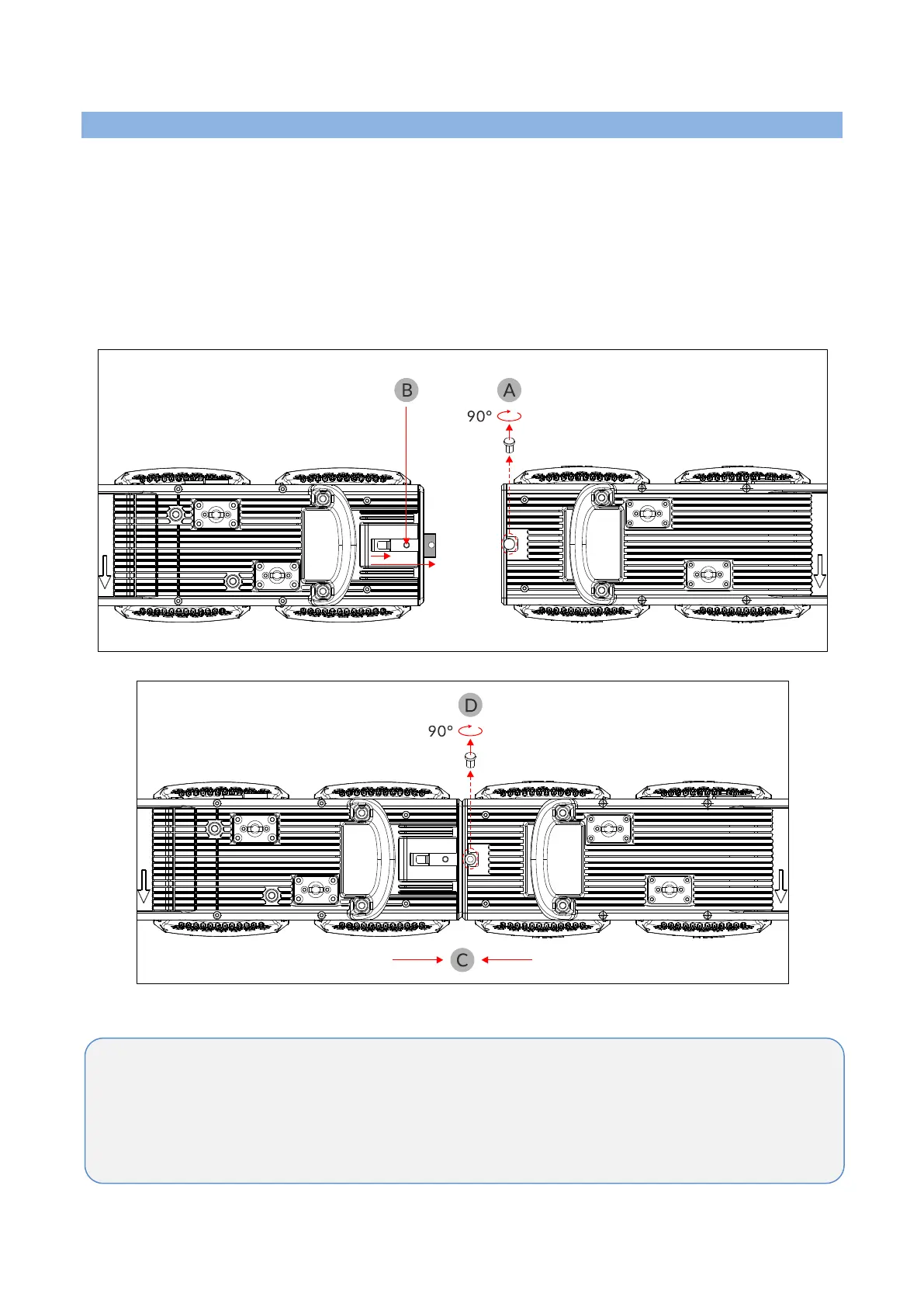

4.2 Connecting and Aligning Multiple Fixtures
A. Pull the locking pin and turn it over 90° so it stays unlocked.
B. Push the button: automatically the slide comes out completely.
C. Place both fixtures against each other in line so that the slide fits into the other fixture.
D. When this is done, pull the locking pin and turn it again over 90°, until the pin fits in the
hole of the slide and locks both fixtures together.
If you need to connect and align more fixtures, repeat the steps above.
To detach the fixtures, simply reverse the steps mentioned above.
Note: Hold down the button and pull the slide back simultaneously to retract it to its
original position.
