Acom 2000A User Manual

9

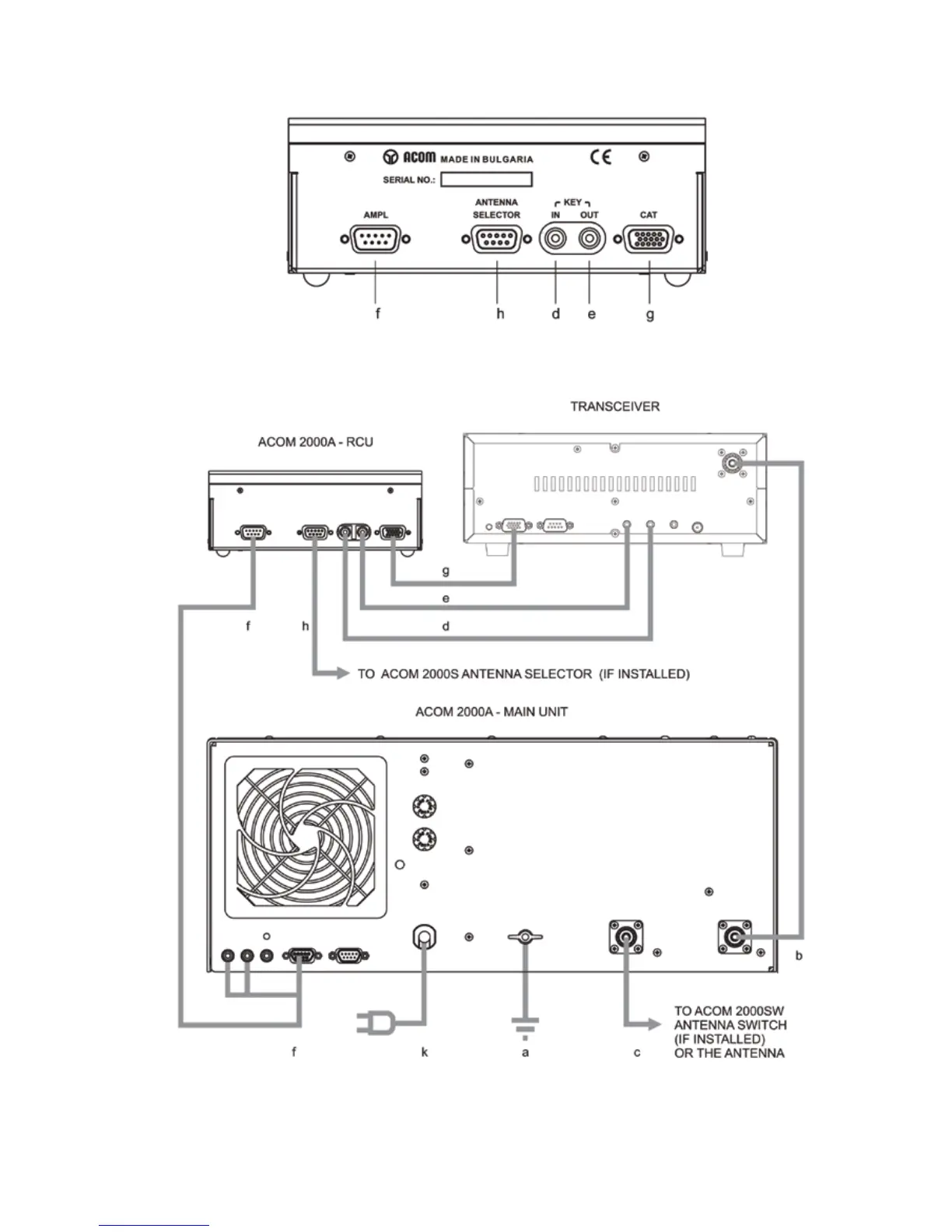

Fig.2-3 Amplier Remote Control Unit Connections
Fig.2-4 Main Unit, RCU, Antenna Selector, and Transceiver connections

Acom 2000A Specifications

General

Power Gain	13 dB
Cooling	Forced air
Complies with CE and FCC	Yes
Frequency Coverage	1.8-29.7 MHz
Harmonic Suppression	Better than 50 dB
Input Impedance	50 Ohms
Tube	4CX800A
Input VSWR	1.5:1 or less
