20 / Chapter 3 Installation

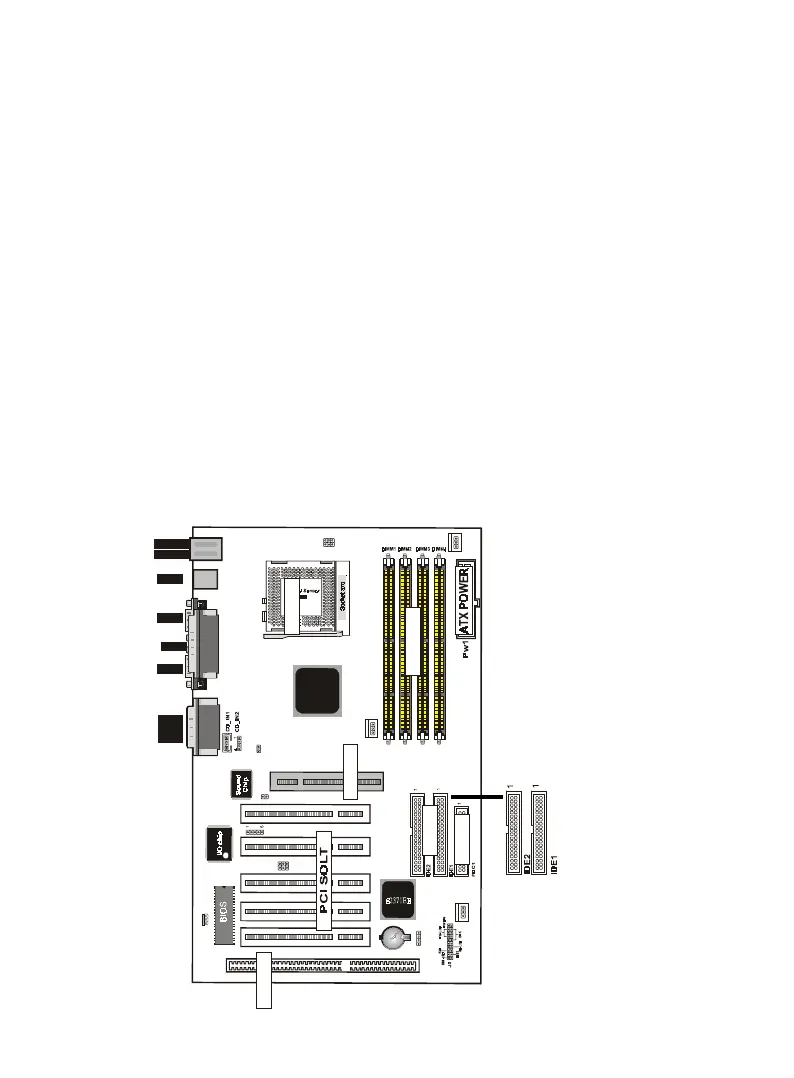

8. Primary / Secondary IDE connectors (Two 40-pin Blocks)
These connectors support the provided IDE hard disk ribbon
cable. After connecting the single end to the board, connect the
two plugs at the other end to your hard disk no space(s) . If you
install two hard disks, you must configure the second drive to
Slave mode by setting its jumper settings. BIOS now supports
SCSI device or IDE CD-ROM boot up (see "HDD Sequence SCSI/
IDE First" & "Boot Sequence" in the BIOS Features Setup of the
BIOS SOFTWARE) (Pin 20 is removed to prevent inserting in
the wrong orientation when using ribbon cables with pin 20
plugged) .
Tip :
You may configure two hard disks to be both Masters
using one ribbon cable on the primary IDE connector.
You may install one operating system on an IDE drive
and another on a SCSI drive and select right one the
through BIOS Feature Setup.
