To ensure your system is safe:
- ensure that an area of at least 50 cm in front of the
appliance is clear of objects which might hinder air
circulation (furniture, chairs, etc.);
- position a shelf at least 10 cm above the top of your
radiator;
- use mounting screws suitable for your wall.

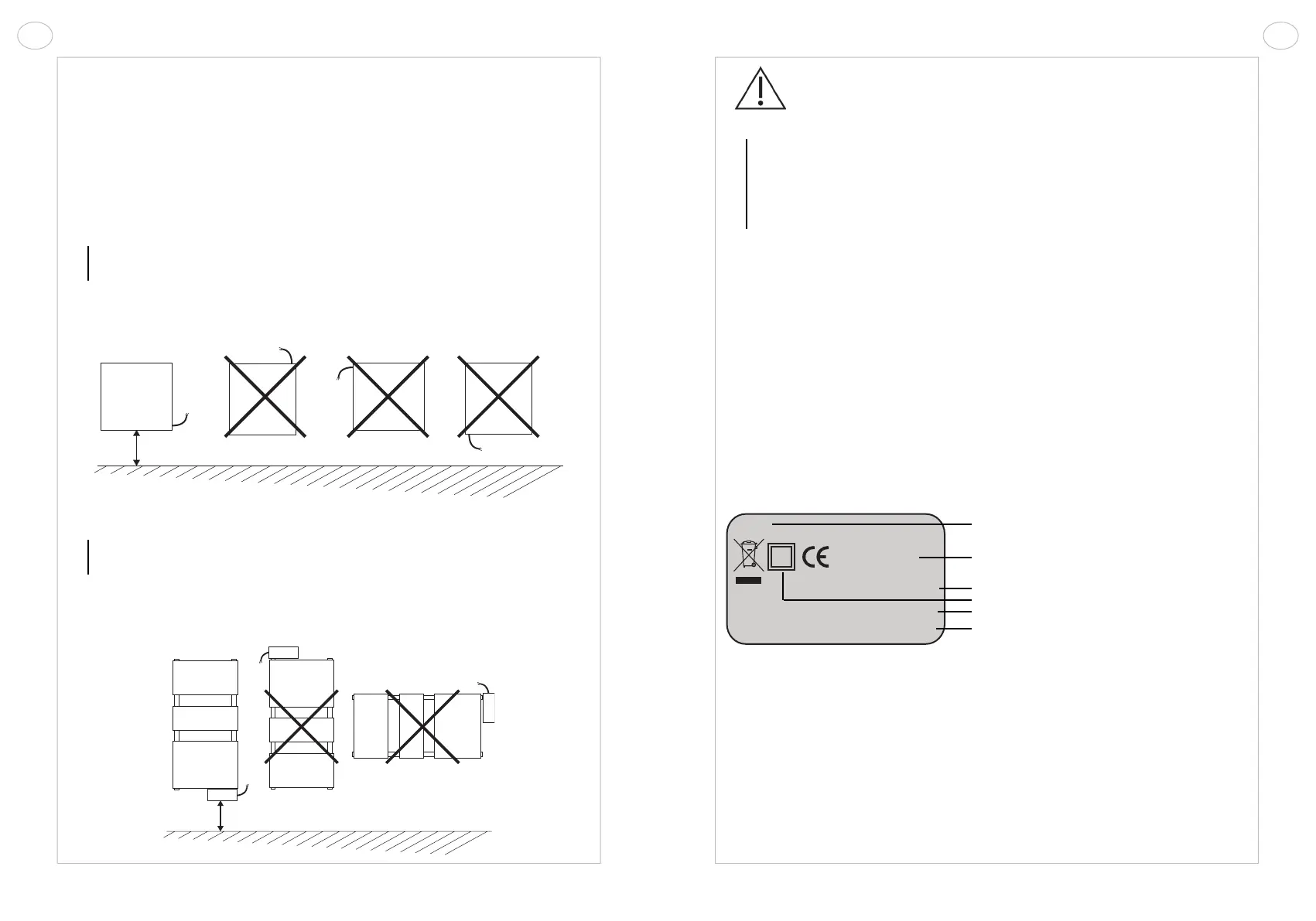

FOR A RADIATOR:
IMPORTANT This appliance should never be installed
with the electrical connection box positioned topside.
Ensure that the bottom of the device is positioned at
least 10 cm above the oor.
FOR A TOWEL RADIATOR:
IMPORTANT This appliance should never be installed
with the electrical connection box positioned topside.
Ensure that the bottom of the device is positioned at
least 15 cm above the oor.
15 cm mini
10 cm mini
CAUTION
Always turn off the electricity supply (circuit-breaker
+ pilot wire) before making any connections.
NOTE Electric towel radiators are designed to be cove-
red safely. However, to ensure that your appliance works
efciently, you are advised not to cover it completely.
Doing so will increase the temperature and cause the
internal cutout to turn off the appliance.
2.2 Positioning your appliance
To get the most out of your appliance and enjoy the highest standards of com-
fort, we recommend that you install the appliance near places with high heat loss
(windows, doors, etc.) wherever possible.
You will nd a complete set of assembly instructions in your appliance’s box.
2.3 Connecting the appliance
The technical specications of your radiator are shown on its nameplate.
Please note these down before installing it and before requesting any after-
sales assistance.
When connecting the appliance to the mains, you must observe:
• the voltage indicated on the nameplate;
• conventional colour coding:
– blue or grey: neutral
– brown: live
– black: pilot wire
IP: protection level of your appliance against the
ingress of solid foreign bodies and water spray
Voltage and power required for installation
Appliance reference number
Class II: double insulated
OF: serial number
Manufacturer code
IP XX
XXX–XXX–XXX–XX
230V ~ XXXXW
OF: XXXXXXXXXX XXXXXX
N CONSTRUCTEUR XXXXXX
