Discharge Capacitor

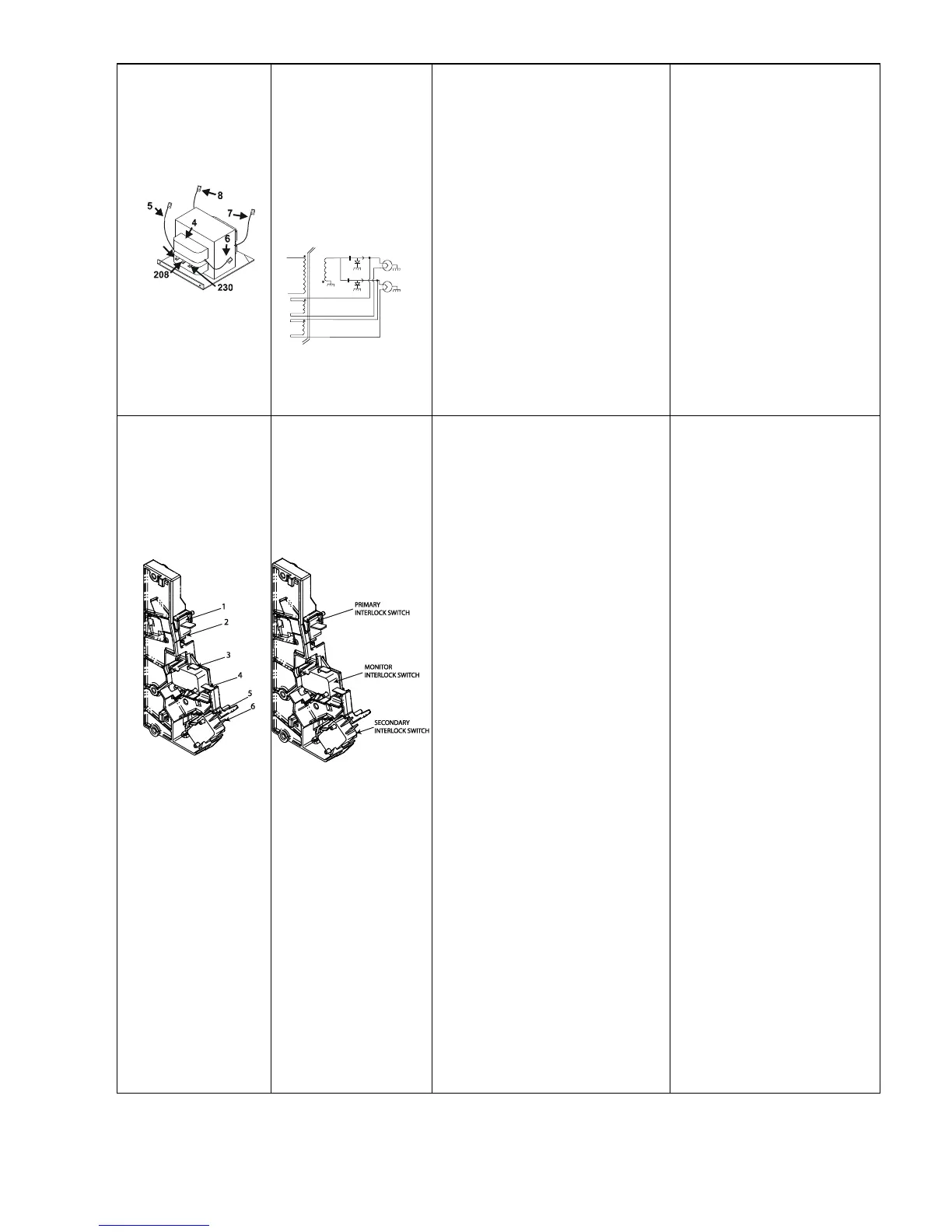

Remove all wires from terminals, and
measure resistance from:
230 to Common ..............................................
Terminal 5 to 6 ................................................
Terminal 7 to 8 ................................................
Terminal 4 to Earth screw on
transformer .....................................................
Terminal 4 to any other terminal ......................
Disconnect wires to switch.
With door open measure resistance
from:
Monitor – Terminals 3 - 4 .................
Primary – Terminals 1 - 2 .................
Secondary – Terminals 5 - 6 ............
With door closed measure resistance
from:
Monitor – Terminals 3 - 4 .................
Primary – Terminals 1 - 2 .................
Secondary – Terminals 5 - 6 ............
After verifying or replacing the
module, re-connect wires to switch
and check operation of monitor
circuit before operating the oven.
