ACP DEC18M - Page 24

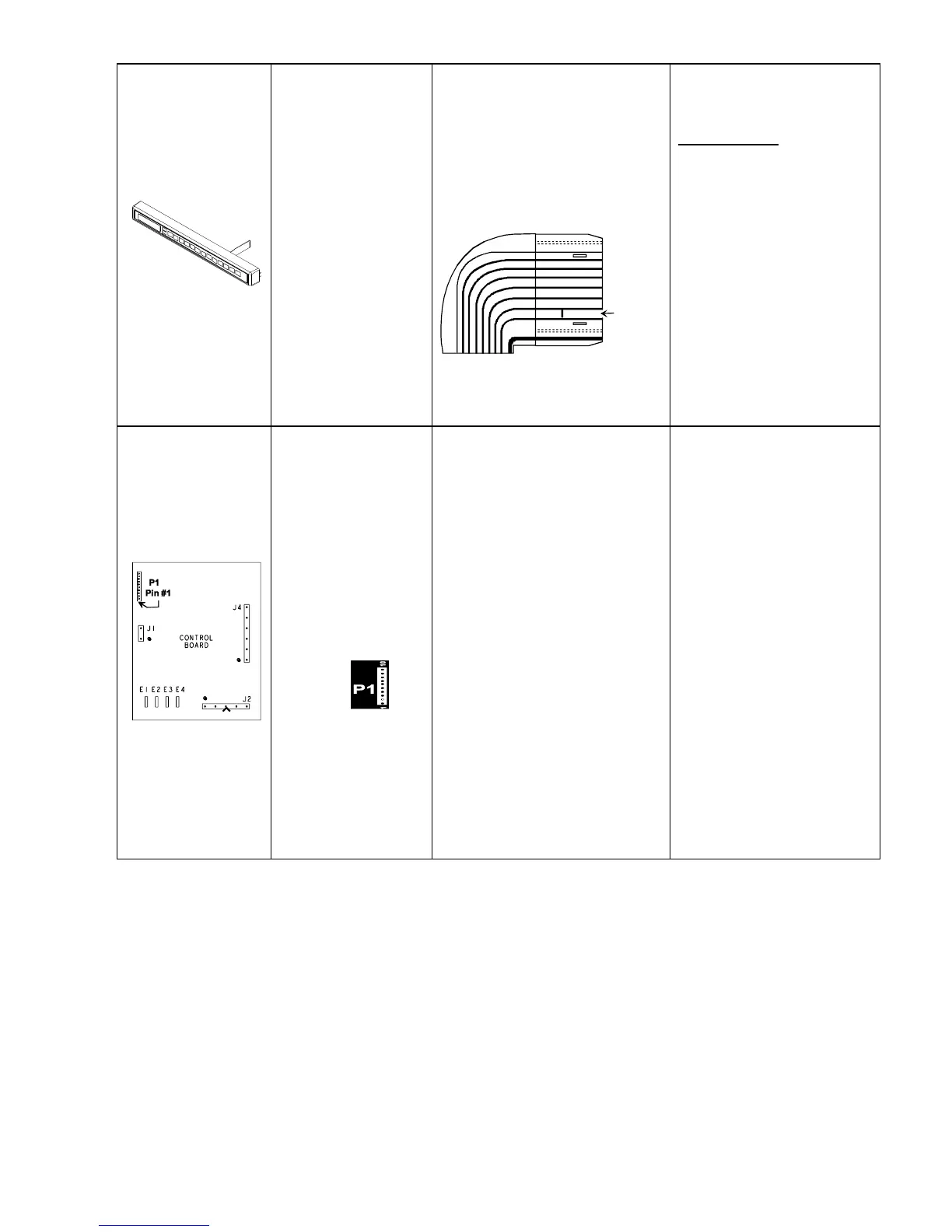

Touch Panel Assembly
Continuity is indicated as 100 Ω and
below.
Pin 1: Ground.
1
2
3
4
5
6
7
8
9
Split
10
Pad Traces
1 8 to 10 Continuity
2 7 to 10 Continuity
3 6 to 10 Continuity
4 5 to 10 Continuity
5 4 to 10 Continuity
6 3 to 10 Continuity
7 8 to 9 Continuity
8 7 to 9 Continuity
9 6 to 9 Continuity
0 5 to 9 Continuity
Start 4 to 9 Continuity
Stop 4 to 8 Continuity
Power Lvl 5 to 8 Continuity
X 2 6 to 8 Continuity
Time Entry 7 to 8 Continuity
Controller board
P1 connector used for
touch panel ribbon
Line voltage to control board
J4-1 to J4-6…………………….
Output drive voltage to triac
Triac terminals………………….
Gate—T1………………………
Fan relay (controls blower motor,
antenna motor(s), and oven light)
Terminals J4-1—J2-2………….
Cook relay
Control board E1—E4……………
Line voltage (All Conditions)
0 VAC (Idle and Standby)
0.9 VAC (Cook)
Line voltage (Standby and Cook)
0 volts (Idle)
Line voltage (Idle)
0 volts (Standby and Cook)
