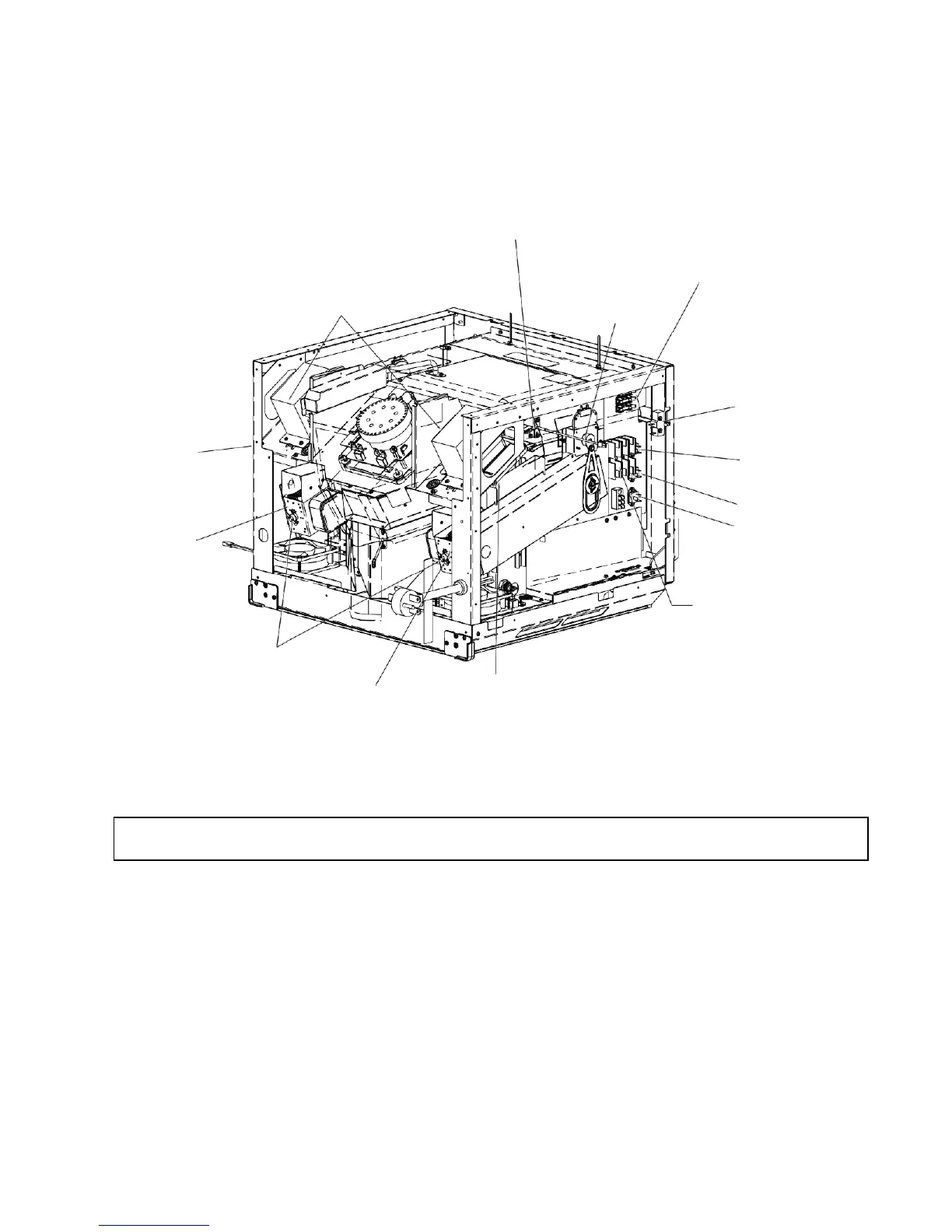

ACP MXP22QTT - High Voltage Component Identification; HV Transformers, Magnetrons, and Fuses

HV Transformers
Magnetrons
Fuses
Sensor
Triac’s
Magnetron TCO’s
Capacitor / Diodes
Convection Heater Element
Small Fuses
F2,F3,F4 (12 amp)
High Voltage Transformers
Temp Sensor
(RTD Convection)
F2 - Convection Motor
F3 - Magnetron # 1
F4 - Magnetron # 2
Capacitor
Diode
(Right Side)
Magnetron # 1
Magnetron TCO’s
Magnetron # 2
Capacitor
Diode
(Left Side)
Switch
(Primary)
Triac (TR1)
(Magnetron # 1)
Triac (TR2)
(Magnetron # 2)
Triac (TR3)
(Convection Heater)
Large Fuses
F1,F5,F6 (25 amp)
*F1 - Main Fuse
F5 - Convection Heater
F6 - Radiant Heater
 Note: If Main Fuse (F1) is blown, Install F-1 Fuse Kit
17
