ACR Electronics AISLink CB2 - Example System Configurations

CB2 Manual
Y1-03-0346 Rev. B 6

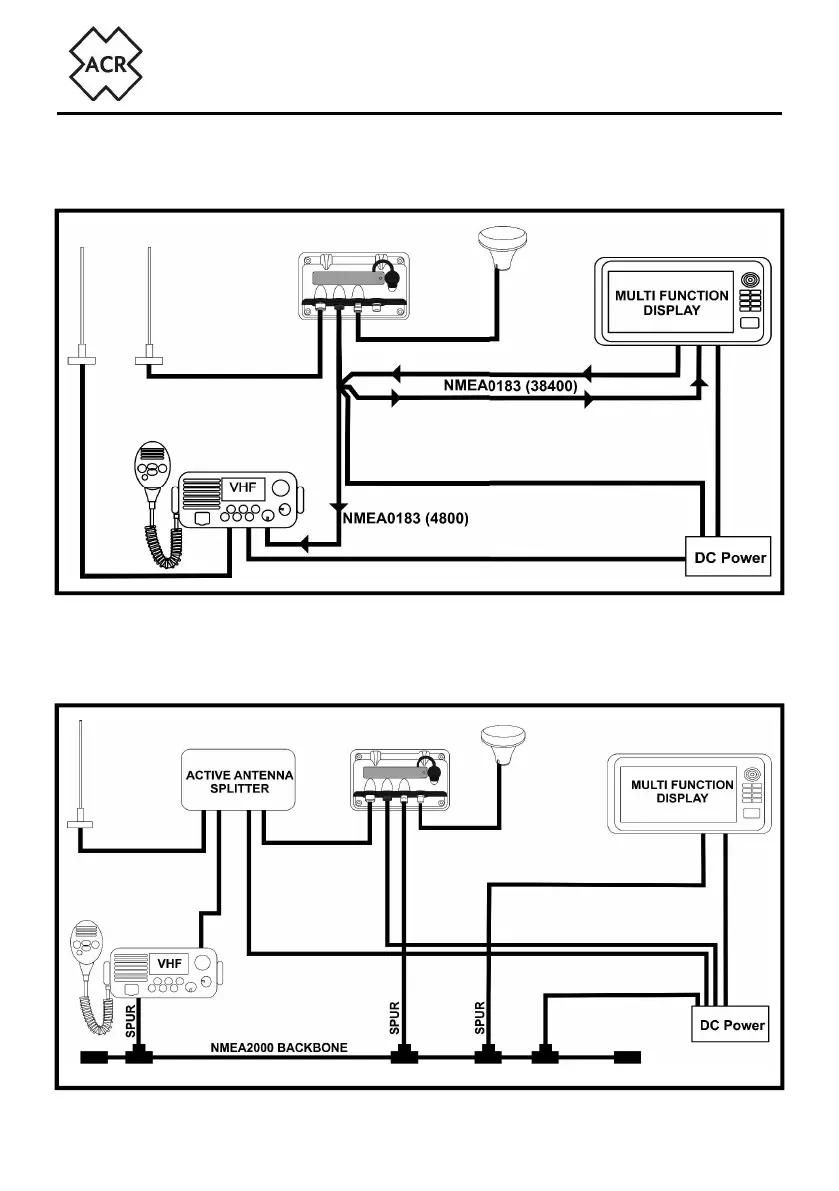

1.5 Example Systems
1.5.1 Example System Using NMEA0183
1.5.2 Example System Using NMEA2000
The CB2 NMEA2000 LEN = 1
AISLink CB2
AISLink CB2
