Y1-03-0346 Rev. B 7
CB2 Manual
2. INSTALLATION
2.1 Mounting

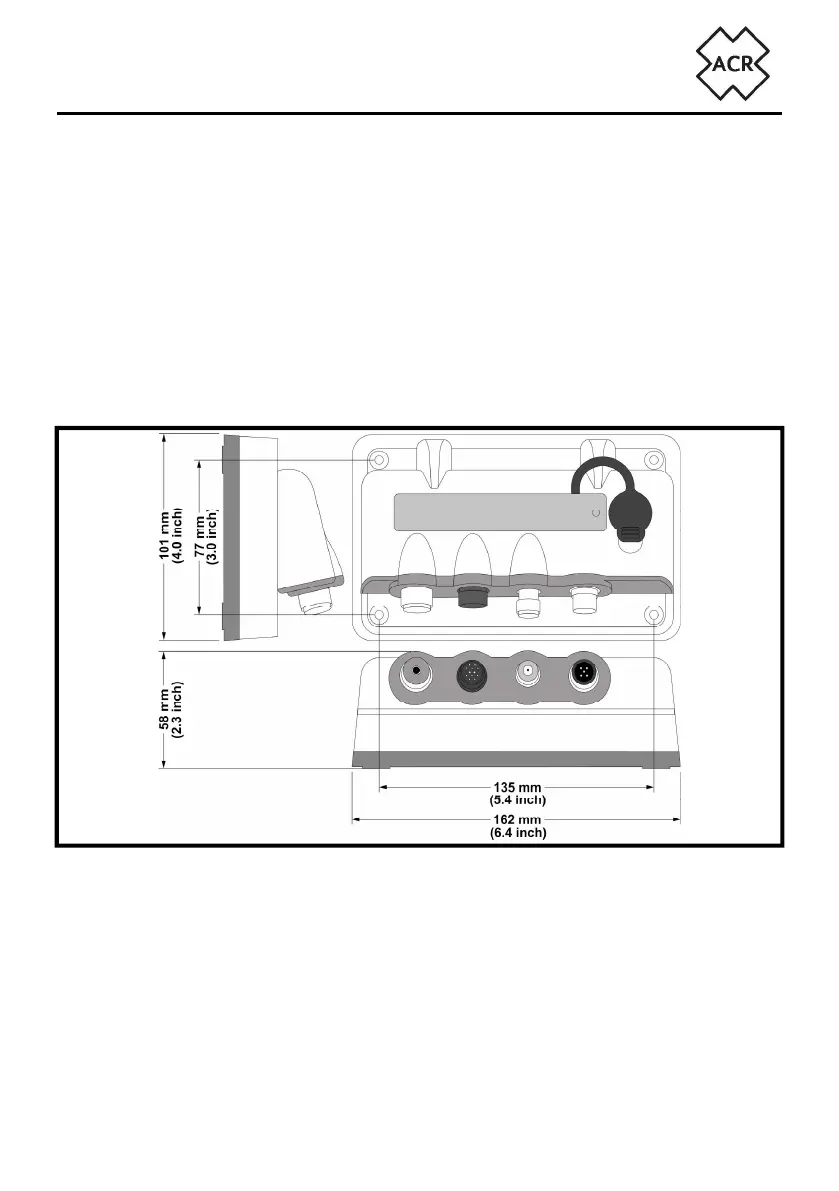

2.1.1 Transceiver mounting
Determine the mounting location for the CB2 ensuring that there are suitable access routes
for all the required cables and attach securely to a fl at surface using the four fi xing screws
provided. The unit should be easily accessible to allow for disconnection from the power
source. The power/data cable plug is the disconnect device, unplugging this will isolate
the CB2 from both poles of the power source. It is also recommended that the unit can be
accessed later to view the indicator LED and operate the Mode button.
