98

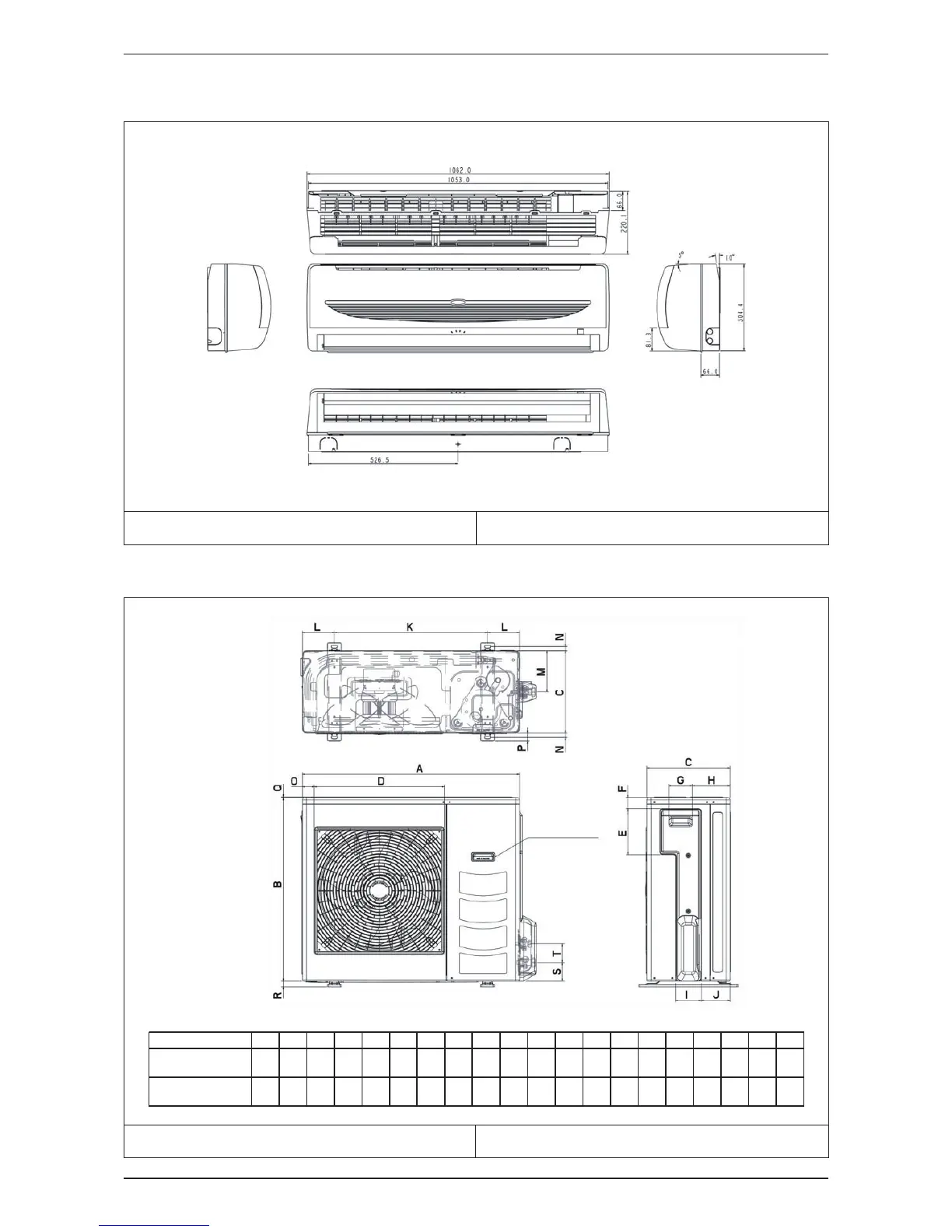

AWM-G-2009 Outline and Dimension
Indoor Unit
Model: AWM 20/25G/GR, A5WM 20/25G/GR
Note: Dimension in mm
Outdoor Unit
Model: ALC 18/20/25C/CR, A5LC 20/25C/CR
Note : Dimension in mm
For A5LC / ALC 25 C/CR
MODEL ABCDEFGH I JKLMNOPQRST
ALC 18C/20C/20CR
A5LC 20C/20CR
855 628 328 508 181 44 93 149 101 113 603 126 164 17 49 32 3 23 73 75
ALC 25C/25CR A5LC
25C/25CR
855 730 328 513 182 44 93 149 101 113 603 126 164 17 47 32 3 23 73 75
Note: Dimension in mm
