137

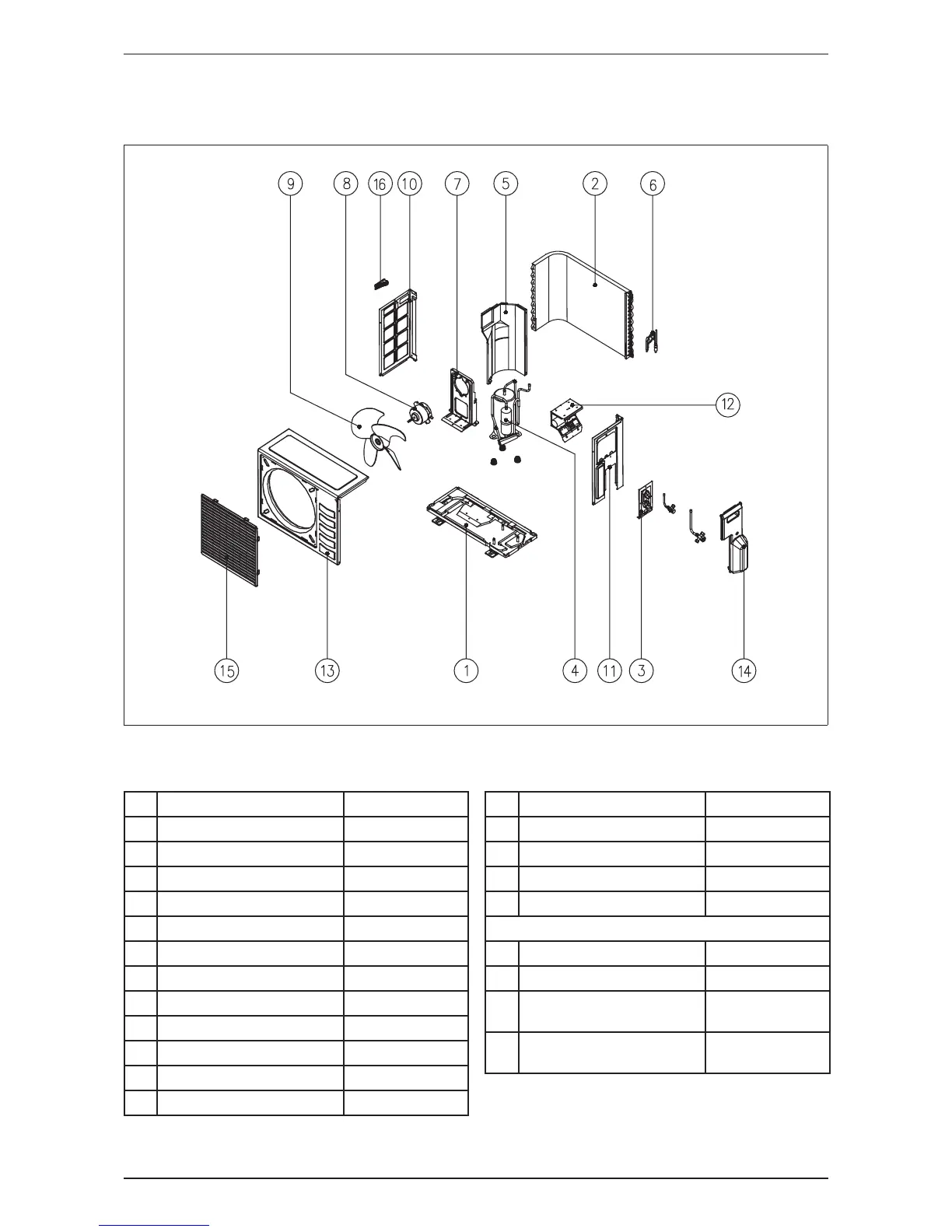

Exploded View and Part List AWM-G-2009
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
OUTDOOR UNIT
MODEL: ALC 09C/CR
OUTDOOR UNIT
MODEL: ALC 09C
No
Description Part Number
1 Assy. Base Pan R50014057372
2 Assy. Outdoor Coil R50024087206
3 Valve Bracket R01014051164
4 Compressor R04019027628
5 Assy. Partition R50064084355
6 Assy. Cap Tube R50024087403
7 Bracket, Fan Motor R01014052516
8 Fan Motor R03039028206
9 Fan Propeller R03019020744
10 Left Panel R01014052510Y
11 Right Panel R01014084434Y
12 Assy. Control Panel R50044089886
No
Description Part Number
13 Top/Front Panel R01014052512Y
14 Assy. Valve Cover R50124055172
15 Assy. Front Grille R50124093629
16 Plastic Handle R12014057948
Parts Not in Diagram
Capacitor, Fan Motor R04029026755
Capacitor, Compressor R04029026775
Assy. Flare Valve 2 Ways
1/4”
R50059029814
Assy. Flare Valve 3 Ways
3/8”
R50059029815
To Next Page
